$65.51
$121.19

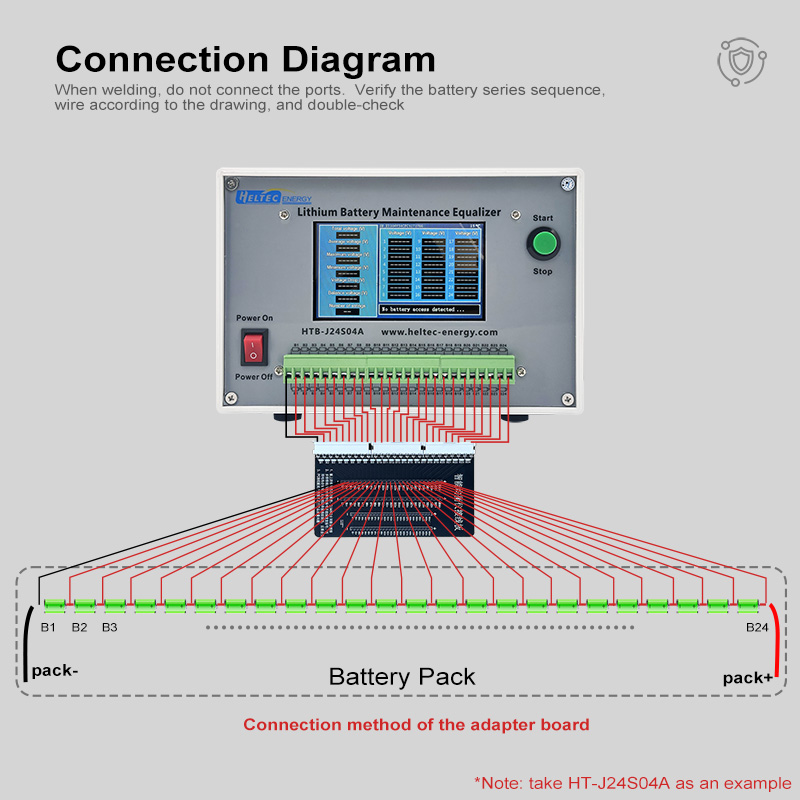

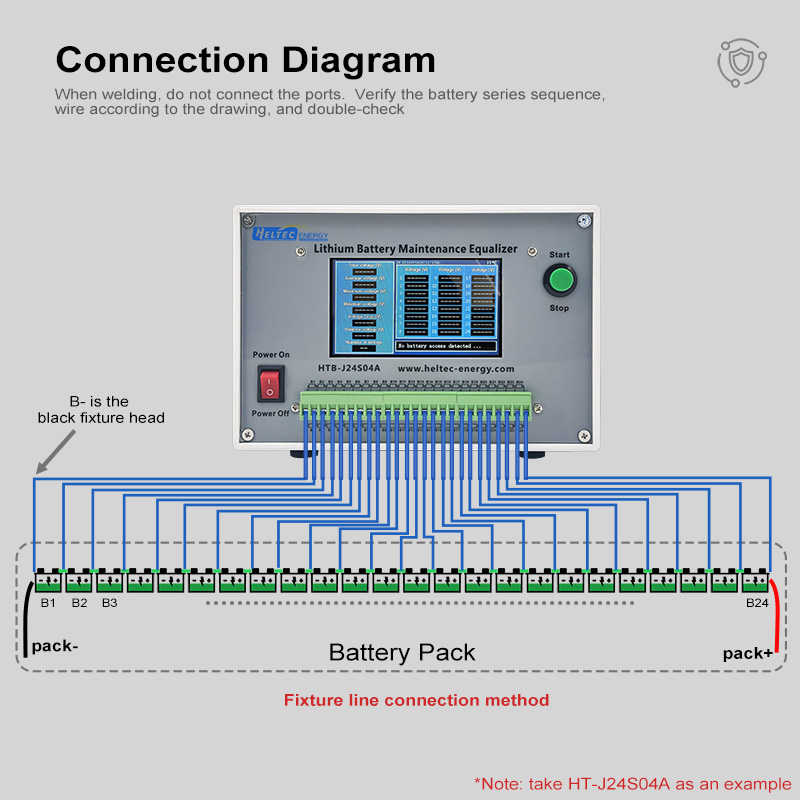

Detailed Parameters Power supply mode DC 12V 4A Single-channel voltage measurement range 1V~5V Single-channel voltage display accuracy 0.001V Single-channel voltage acquisition accuracy (0.05% 0.003V) Single-channel voltage working range 2.0V~4.5V Adjustable balancing current 1A-7A (The smaller the voltage, the smaller the impedance and the smaller the current.) Applicable battery type Lithium batteries with voltages between 2.0V and 4.5V, such as ternary lithium and lithium iron phosphate Working temperature and humidity Temperature of 0℃~50℃ and a humidity of 20%~80%RH. Working environment No corrosive, explosive, insulation-damaging gas or conductive dust, etc. Battery Maintenance Steps 1. There is a faulty battery cell: replace the cell – fully charged – balance – fully charged – battery maintenance is completed. 2. There is no faulty battery cells: fully charged – balance – fully charged – battery maintenance is completed. 3. If one time equalization cannot achieve the desired effect, it can be repeated Attention 1. Due to the large balancing current, the wires should be thick enough, otherwise it may burn out or cause other problems. 2. B – refers to the negative pole of the battery pack, B1 is the first string from the negative pole, and it is prohibited to connect more batteries during equalization. 3. When balancing, please be careful not to touch the battery with the wires disconnected and do well insulation protection. 4. Please kindly confirm the multiple times before connecting to the instrument. （This fixture needs to be purchased separately） Advantages: Discharge balance, no risk of overloading. Fast and simultaneously balancing. Constant resistance 1 ohm discharge balancing. General Parameters: Technical Index 2-24S 7A Lithium Battery Automatic Equalizer Model SKU HTB-J24S07A Applicable Battery Strings 2-24S Applicable Battery Type Ternary lithium, Lithium iron phosphate, Titanium cobalt lithium Max Balancing Current 7A Balancing Type Discharge balancing Size(cm) 31*26*21 Weight(kg) 3.5 Request For Quotation Jacqueline:
