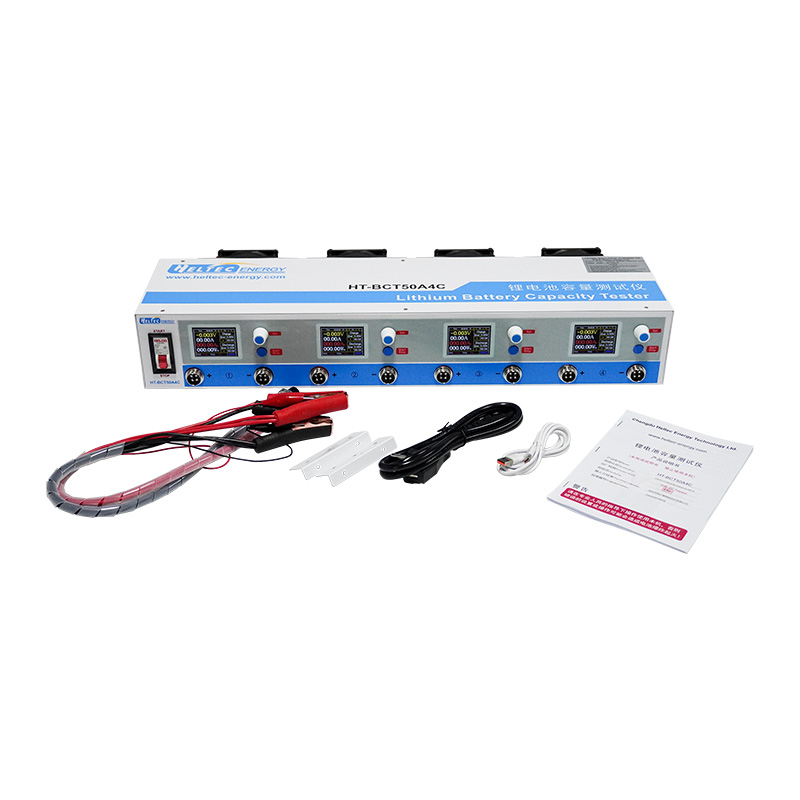

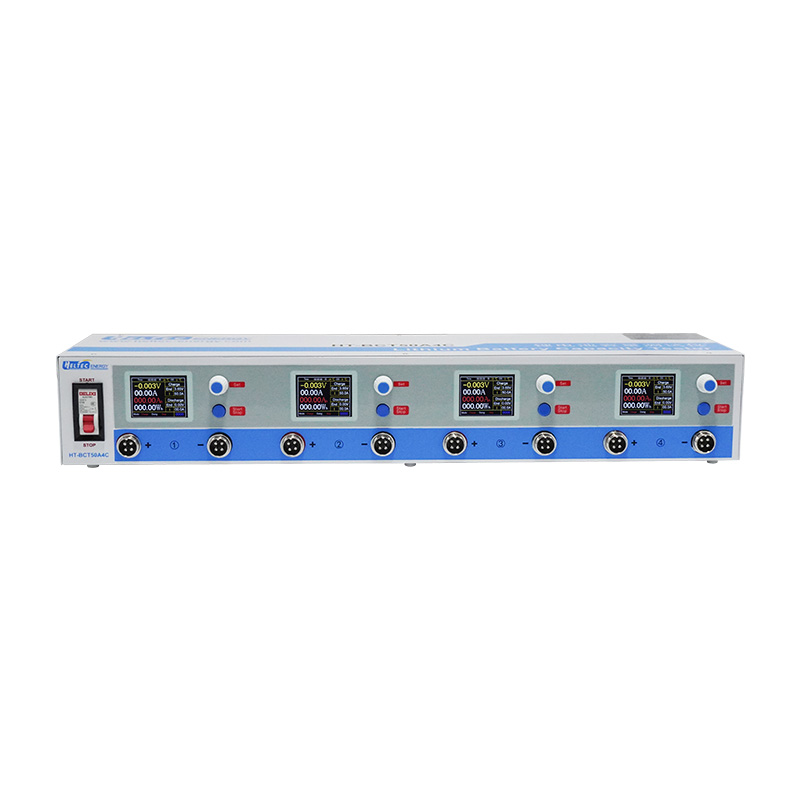

Heltec 4 Channels Battery Charge Discharge Capacity Tester

Battery Charge Discharge Capacity Test Machine The 4-channel battery charge and discharge tester is designed specifically for 0.3-5V and 1-2000Ah battery cells. The charging and discharging range is adjustable from 0.3-5V/0.3-50A Brand Name: Heltec Energy Origin: Mainland China Warranty: One year MOQ: 1 pc Number of channels 4 channels Charging range 0.3-5V/0.5-50AAdj Discharge range 0.3-5V/0.5-50AAdj Work step Charge/Discharge/Rest/Cycle Power AC200-240V 50/60HZ (If you need 110V,please inform us in advance) Size and weight Product Size 620*105*230mm,Weight 7Kg 4 Channels Lithium Battery Charge and Discharge Capacity Tester Charge/Discharge Voltage Range: 0.3-5V   Charge/Discharge Current Range: 0.3-50A 4 channels can work in parallel to achieve 200A charging and discharging (with consistent parameter settings) Channel isolation, no need to remove the connection piece of the battery pack Model HT-BCT50A4C, 4 Channels are isolated from each other and work independently Charging range 0.3-5V/0.5-50AAdj Discharge range 0.3-5V/0.5-50AAdj Work step Charge/Discharge/Rest/Cycle Communication USB,WIN XP or above systems,Chinese or English Extended function 4 channels can work in parallel,achieving 200A charging and discharging (with consistent parameter settings), channel is olation,and no need to disassemble the connecting pieces between battery cells Auxiliary functions Voltage balancing(CV Discharge) Protective function Battery overvoltage/Battery reverse connection/Battery disconnection/Fan not running Calibration equipment Standard source(V:Fluke 8845A,A:Gwinstek PCS-10001) Accuracy V±0.1%,A±0.1%,The accuracy is valid for one year from the date of purchase Cooling Cooling fans open at 40°C,protected at 83°℃ (please check and maintain the fans regularly) Working environment 0-40°℃,air circulation,do not allow heat to accumulate around the machine Warning During battery testing,someone must be present to supervise Power AC200-240V 50/60HZ (If you need 110V,please inform us in advance) Size and weight Product Size 620*105*230mm,Weight 7Kg Package 1. Battery charge discharge capacity tester *1 set 2. Power line *1 set 3. Battery fixture *4 set 4. Anti-static sponge, carton box. Request for Quotation: Jacqueline: [email protected] / 86 185 8375 6538 Vivian: [email protected] / 86 135 5108 9621
