$17.99
$25.91

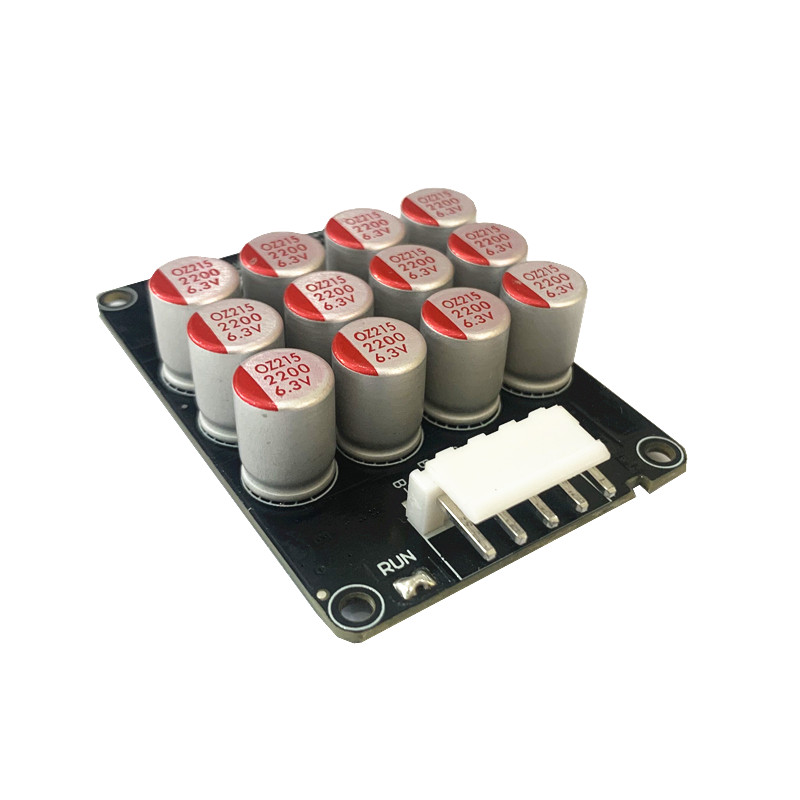

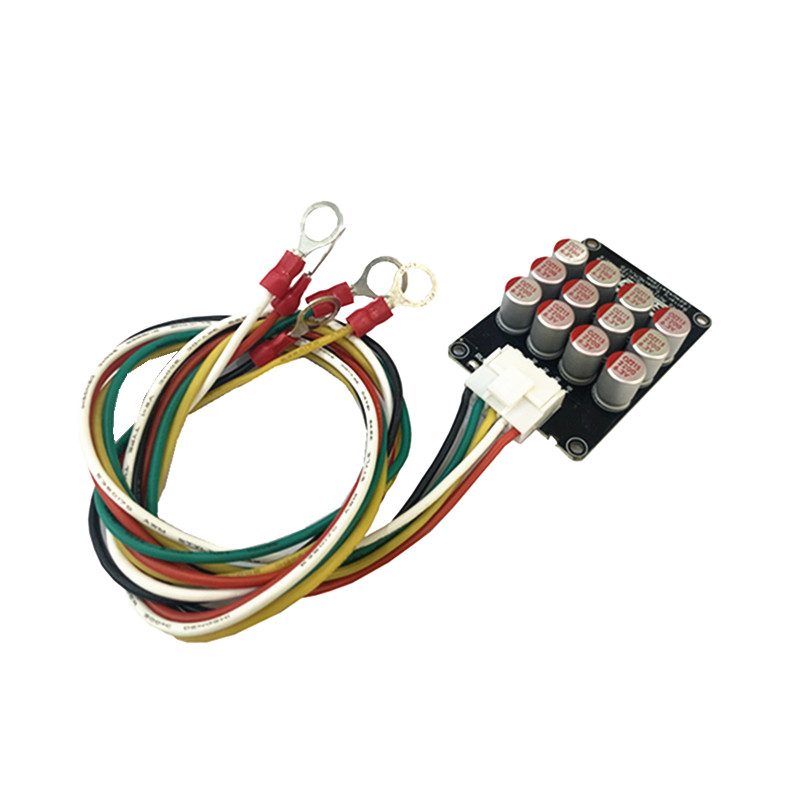

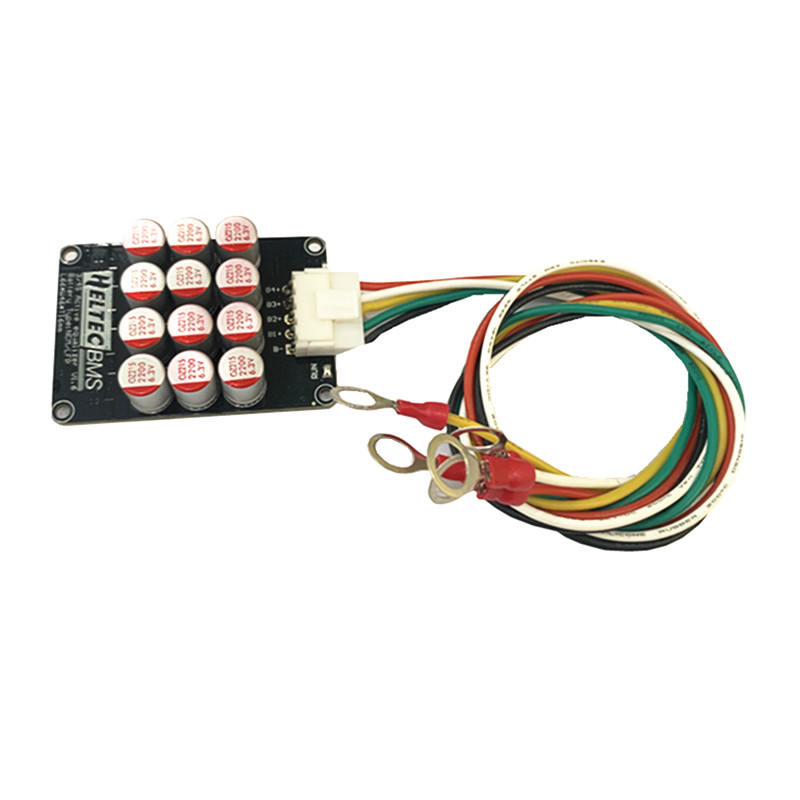

Measured fault battery pack combination 4 string 25Ah equalization curve As the battery battery cycle times increase, the battery capacity decay speed is inconsistent, causing the battery voltage to be seriously out of balance. The battery barrel effect will cause the battery to charge. The BMS system detects that the battery has entered the overcharge protection in advance. In fact, only one of the batteries is full, or let The BMS system detects that the battery enters the over-discharge protection state, which is actually caused by over-discharge of one of the lower-voltage batteries. After the device acts, each battery voltage reduces the capacity attenuation caused by the battery barrel effect and prolongs the problem. The battery pack has a service life. Brand: HeltecBMS Material: PCB board Country of origin： China MOQ： 1 pc Battery Type: LifePo4/Lipo/LTO Balance type: Capacitive Energy transfer Active Balancing Feature: Working voltage: 1.8V-4.5V Suitable for ternary lithium, lithium iron phosphate, lithium titanate. Working principle, the capacitor fit transfers the charge mover, the equalization board is connected to the battery, and the equalization is started. The original new ultra-low internal resistance MOS, 2OZ copper thickness PCB Equilibrium current 0-5.5A, the more balanced the battery, the smaller the current, with manual sleep switch, sleep current mode is less than 0.1mA, the balance voltage accuracy is within 5mv! The quiescent current is about 12 mA. It is recommended that the battery capacity is 60-300AH. With under-voltage sleep protection, the voltage will stop automatically when the voltage is lower than 3.0V, and the standby power consumption is less than 0.1mA. LTO Only means that this edition is only applicable to lithium titanate. The indication without LTO applies to ternary lithium and lithium iron phosphate. for all means suitable for ternary lithium, lithium iron phosphate, lithium titanate. RV1-8 copper nose Standard Cable RV1-8 copper nose Wire :60CM Standard : 40CM with no Cooer Nose Connection Customization Customized logo Customized packaging Graphic customization We accept customization and OEM/ODM, if you need any customization including but not limited to balance voltage setting, adding logo, removing logo, color change, accessory customization etc., please send us inquiry for more information! Request For Quotation Jacqueline:
