$44.82
$71.26

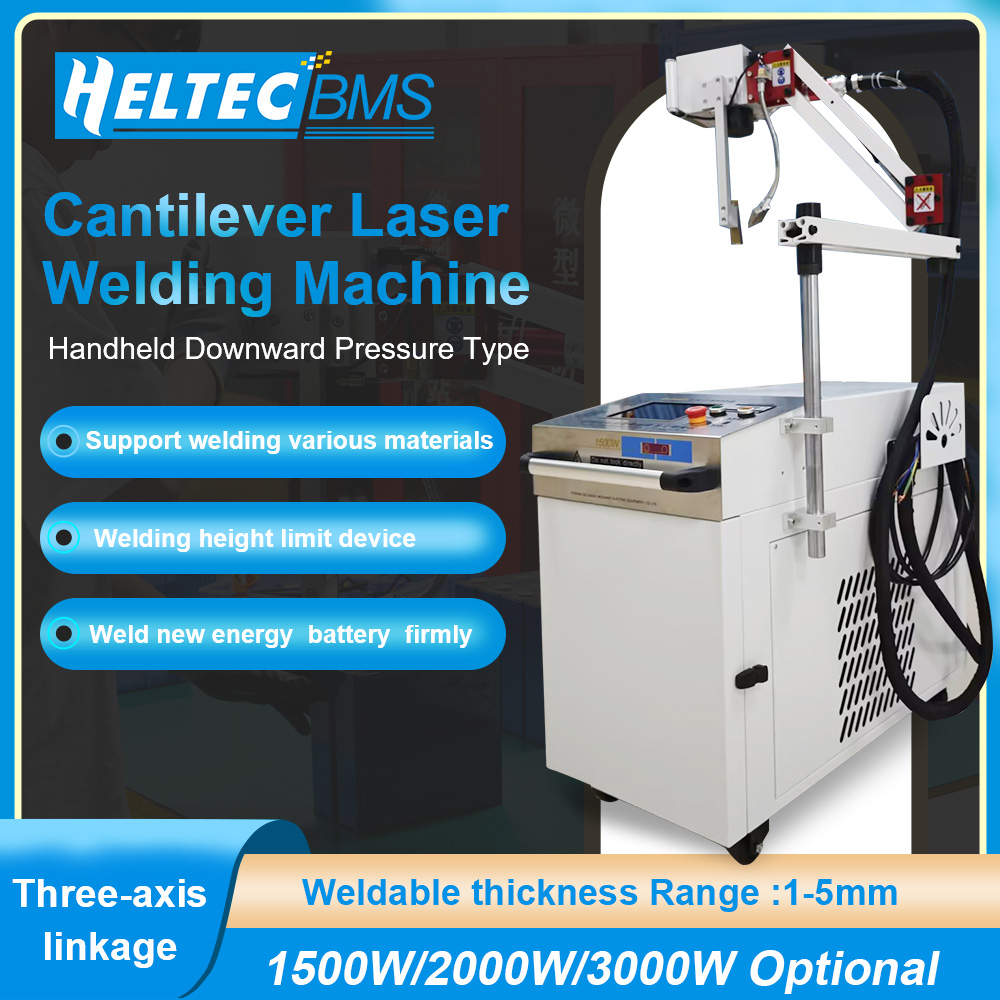

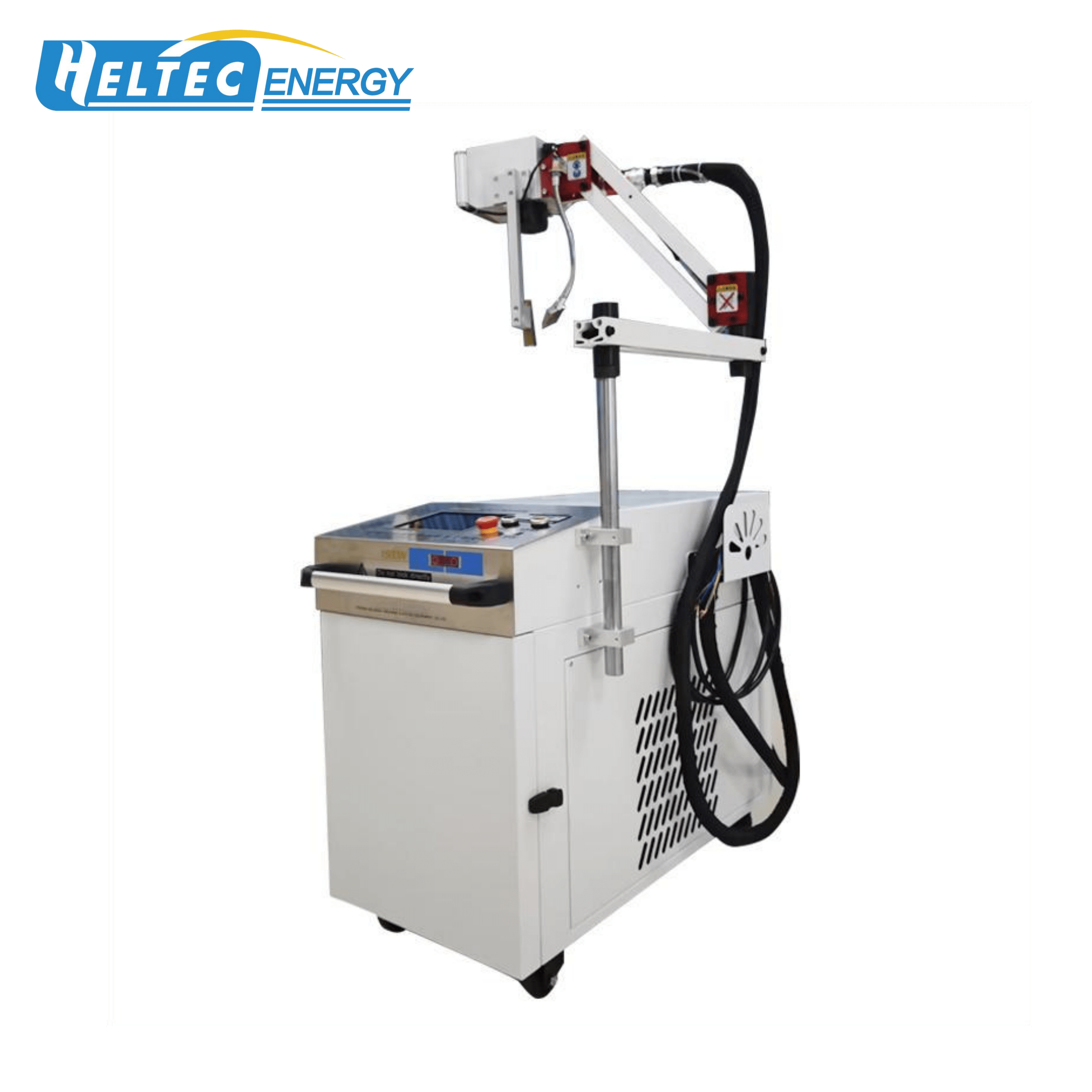

The product is in stock but cannot be purchased directly. If you have any needs, please send us an inquiry Product Information Brand Name Heltec Energy Product Name Handheld Cantilever Laser Welding Machine Origin Mainland China Warranty One year MOQ 1 pc Application New energy vehicle lithium battery maintenance; battery copper and aluminum welding, battery ear pole, battery outer box nameplate laser marking Supply voltage AC220V±10% Output power 1500W Cooling system Water cooling Size 60*102*129cm Power consumption <6KW Laser wavelength 1070±10mm Machine weight About 140KG Features The cantilever adopts a three -axis linkage structure,which has high flexibility and more accurate welding. The welding speed is faster than the traditional method and improves production efficiency. Achieve multi-shape welding through program control,and flexibly adapt to the welding requirements of various complex shapes 0 Equipped with software of graphics processing functions,which makes operation easier. It uses an advanced control system and high- quality lenses and has very good stability. It can work continuously for a long time with stable welding quality. Diversified welding, not only can weld single pattern, but also mark and draw.It is easy and efficient. According to different welding materials,the output energy waveform can be set and controlled to achieve a more ideal welding effect. The machine shell is thickened and reinforced,which can be used as a highly rigid workbench,eliminating the need for an additional workbench and improving space utilization. Request for Quotation Jacqueline:
