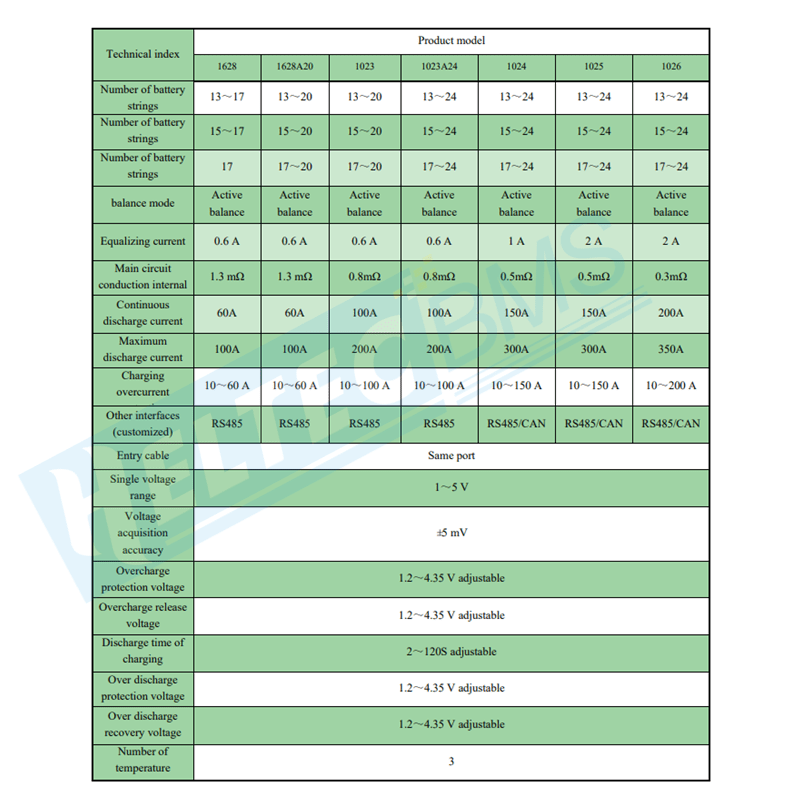

Parameter: Number of battery strings:(ternary lithium) 13s-17s 13s-20s 13s-24s Number of battery strings:(iron lithium) 15s-17s 15s-20s 15s～24s Number of battery strings:(lithium titanate) 17s 17s-20s 17s～24s balance mode: Active balance Equalizing current 0.6 A 1 A 2 A Main circuit conduction internal resistance 1.3 mΩ 0.8mΩ 0.5mΩ 0.3mΩ Continuous discharge current 60A 100A 150A 200A Maximum discharge current 100A 200A 300A 350A Charging overcurrent protection (adjustable) 10～60 A 10～100 A 10～150 A 10～200 A Other interfaces (customized): RS485 or CAN Entry cable Same port Single voltage range 1～5 V Voltage acquisition accuracy ±5 mV Overcharge protection voltage 1.2～4.35 V adjustable Overcharge release voltage 1.2～4.35 V adjustable Discharge time of charging overcurrent 2～120S adjustable Over discharge protection voltage 1.2～4.35 V adjustable Over discharge recovery voltage 1.2～4.35 V adjustable Number of temperature detection 3 Temperature protection yes Short circuit protection yes Coulomb meter yes Bluetooth function : Support Android and IOS Features ● Bluetooth communication Support Bluetooth communication function, mobile APP supports Android / l0S, check battery status in real time through APP, adjust protection board working parameters, and control charge and discharge ● GPS positioning cloud data Support GPS positioning, real-time viewing of battery location, track playback, etc., support for cloud remote data viewing, remote cut off battery discharge and other functions ● High-precision coulomb meter Accurately calculate remaining battery charge and charge based on current-time integration ● Support CAN / RS485 interface (optional) Support CAN / RS485 interface, user protocol can be embedded, flexible expansion ● Independent watchdog design Independent watchdog design, real-time monitoring program running status, never crash RS485 & CAN RS485 & CAN should be purchased separated, you can only choose RS485 or CAN, if you need , contact us to buy it separately. if you don’t buy separately , we will only ship the BMS 24S Battery Wiring Diagram Size 1 24S 0.6A 60A 20S 0.6A 100A 24S 0.6A 100A 24S 1A 150A 24S 2A 150A 24A 2A 200A Size 2 8S 2A 200A 17S 0.6A 60A 20S 0.6A 60A APP download
