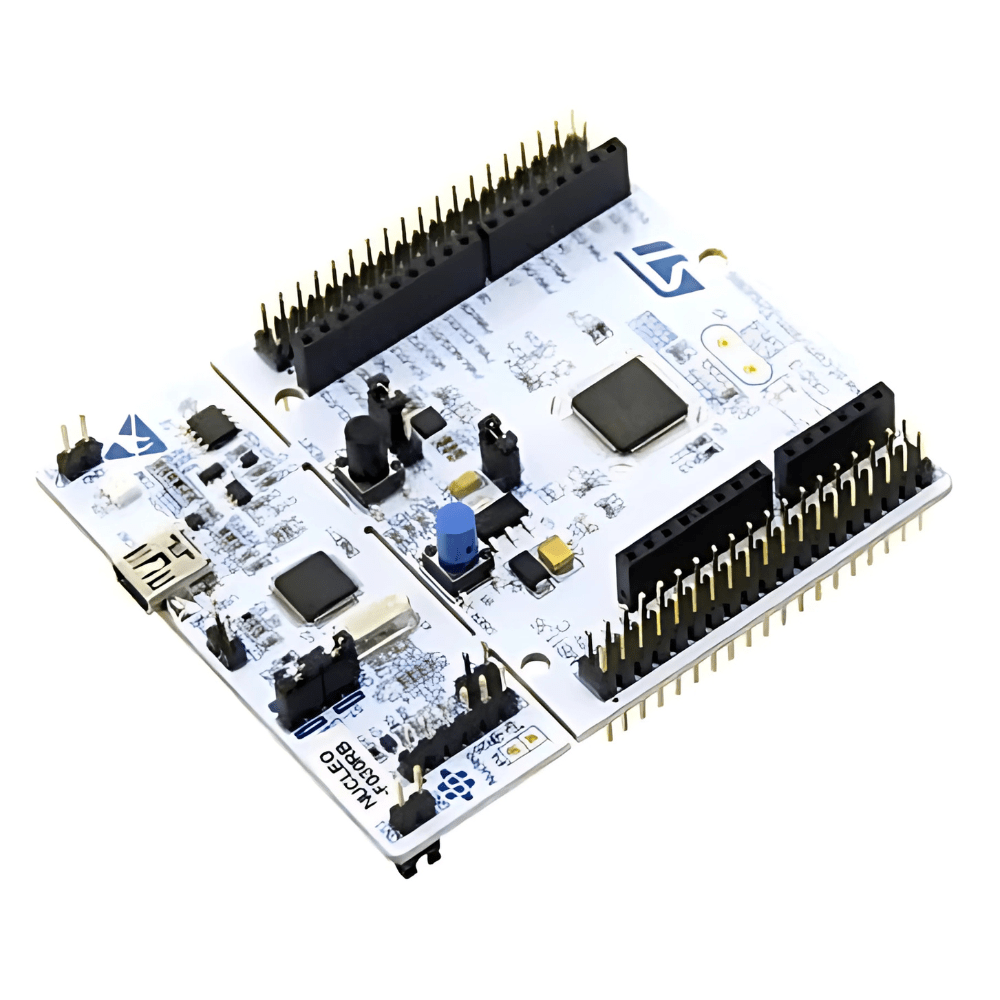

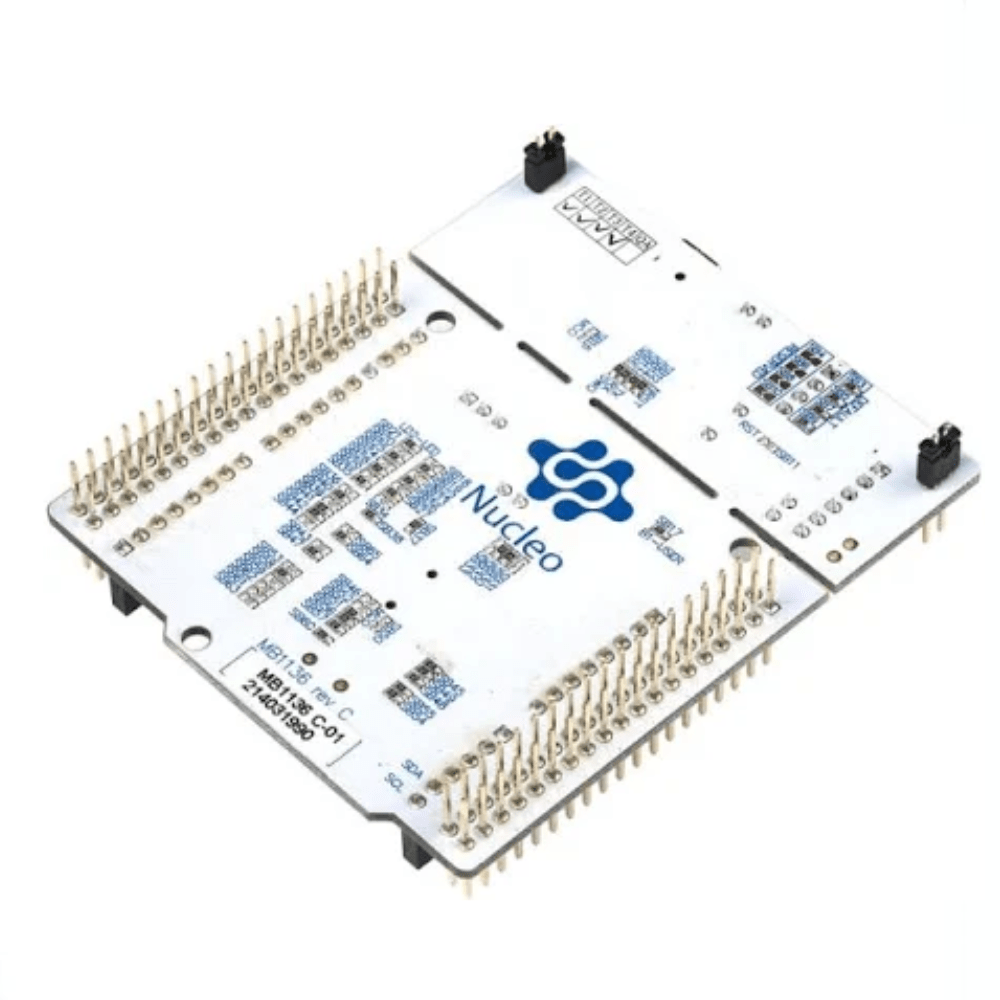

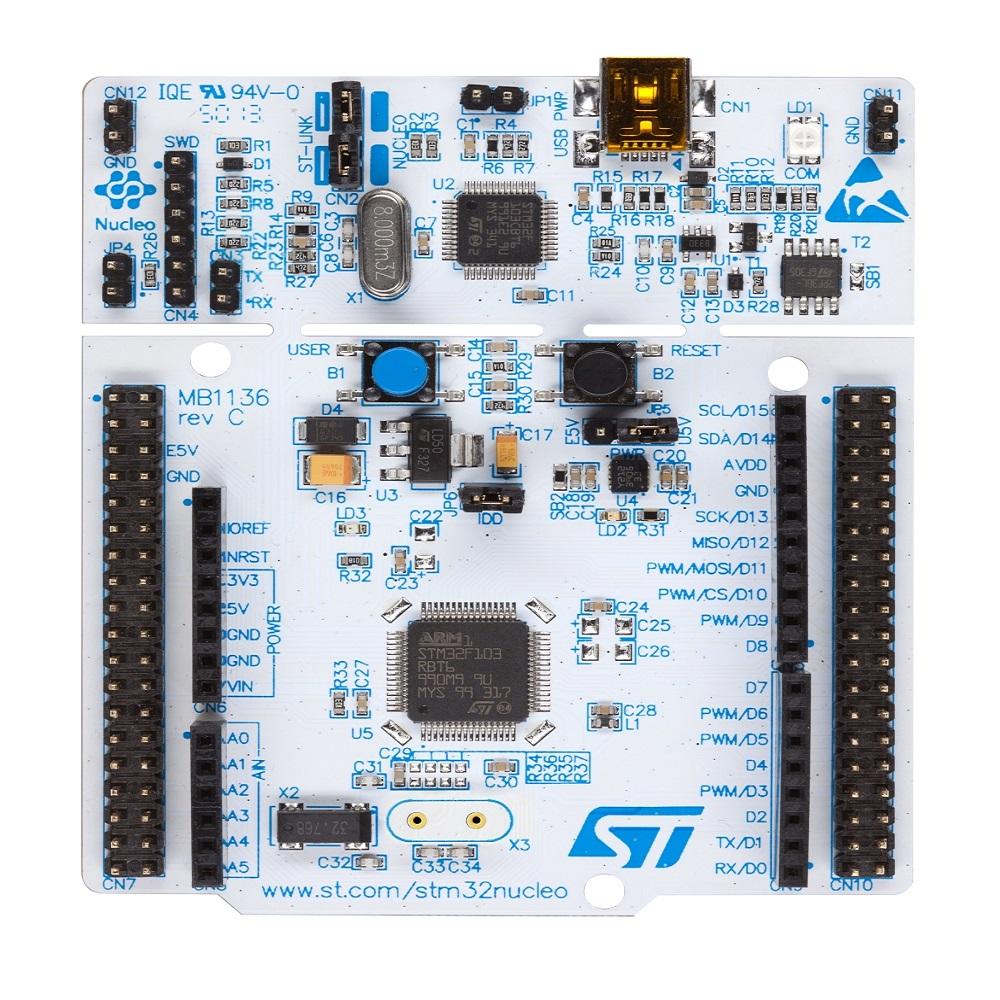

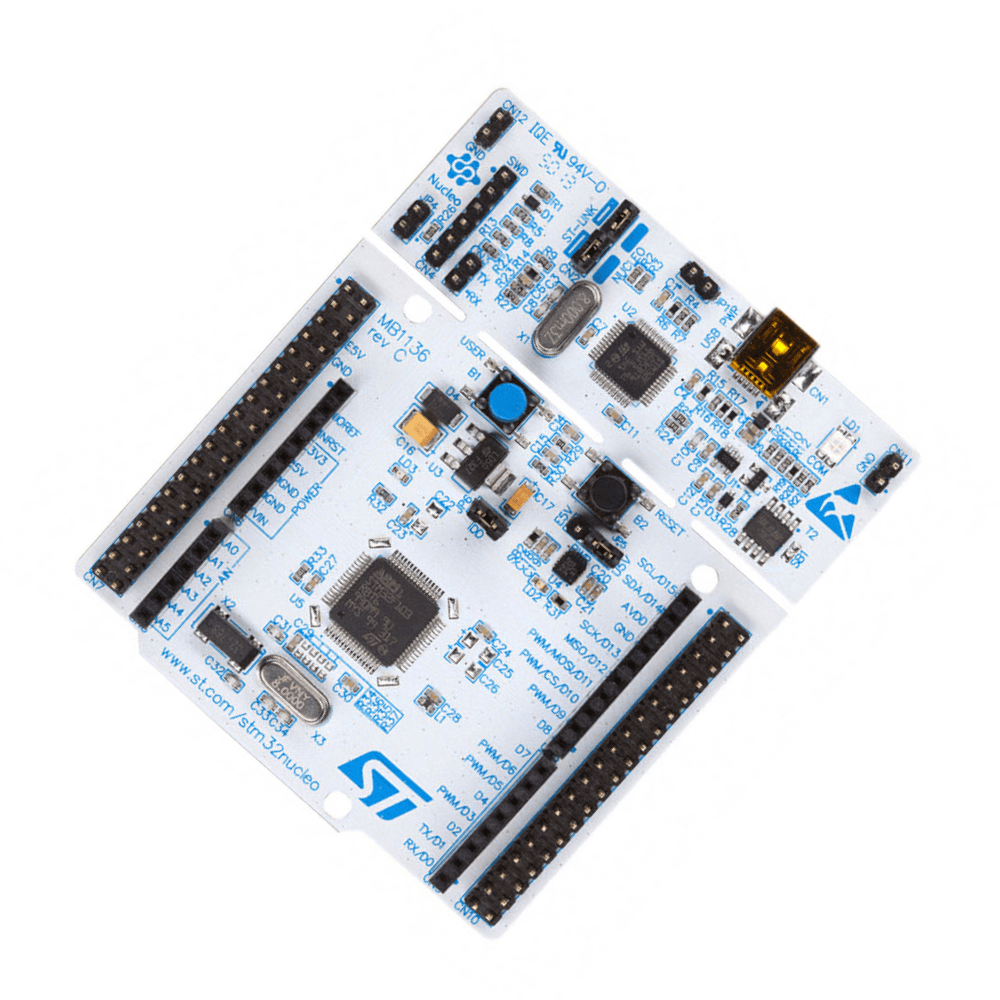

STM32 Nucleo-64 Development board with STM32F030R8 MCU, supports Arduino and ST Morpho Connectivity

Common features STM32 microcontroller in LQFP64 or LQFP48 package 1 user LED shared with ARDUINO® 1 user and 1 reset push-buttons 32.768 kHz crystal oscillator Board connectors: ARDUINO® Uno V3 expansion connector ST morpho extension pin headers for full access to all STM32 I/Os Flexible power-supply options: ST-LINK USB VBUS or external sources On-board ST-LINK debugger/programmer with USB re-enumeration capability: mass storage, Virtual COM port, and debug port Comprehensive free software libraries and examples available with the STM32Cube MCU Package Support of a wide choice of Integrated Development Environments (IDEs) including IAR Embedded Workbench®, MDK-ARM, and STM32CubeIDE Board-specific features External SMPS to generate Vcore logic supply 24 MHz or 48 MHz HSE Board connectors: External SMPS experimentation dedicated connector Micro-B or Mini-B USB connector for the ST-LINK MIPI® debug connector Package Includes : 1 x STM32 Nucleo-64 development board with STM32F030R8 MCU, supports Arduino and ST morpho connectivity
