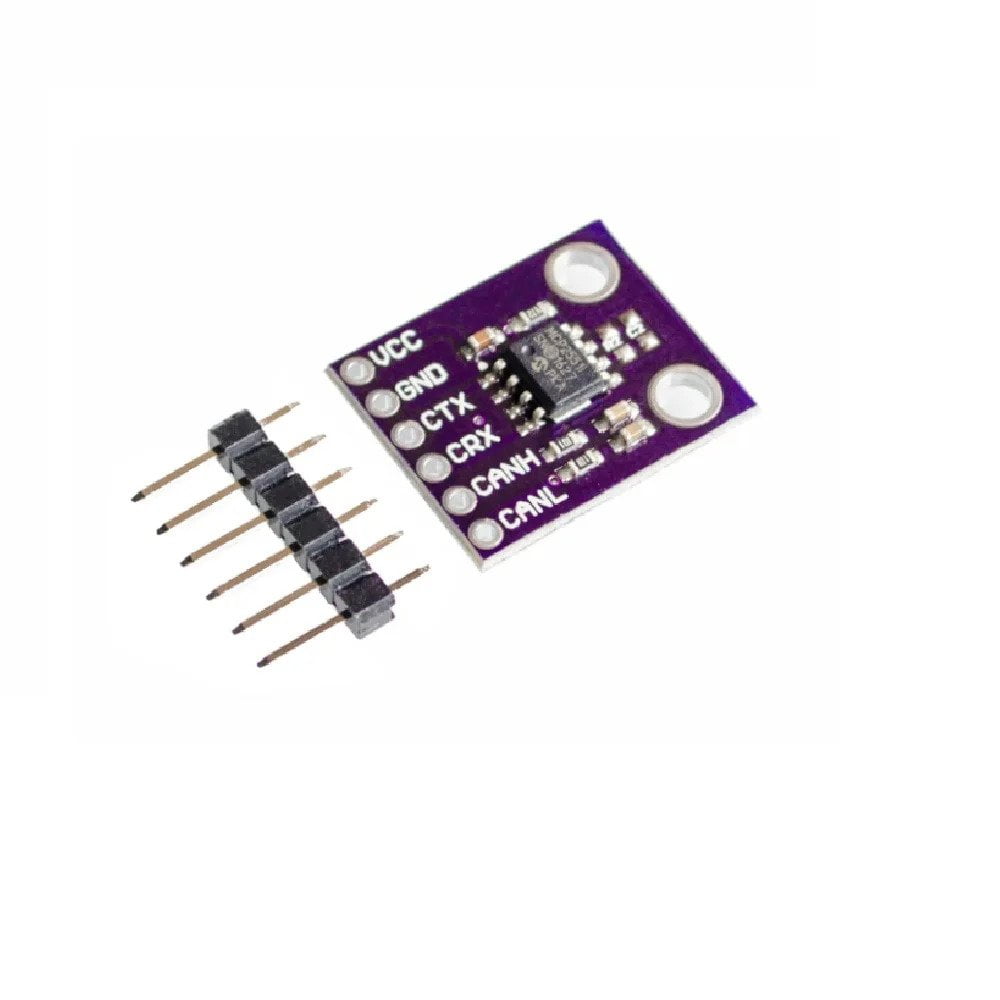

CJMCU-2551 MCP2551 CAN Protocol Controller High-speed Interface Module

The CJMCU-2551 MCP2551 CAN Protocol Controller High-speed Interface Module is a high speed CAN, with fault-tolerant capabilities. It acts as an interfacing device between CAN protocol and the physical bus. The device, MCP2551 provides differential transmit and receive capabilities and is compliant with the ISO-11898, including the 24V requirements. Data transfer rate of up to 1Mb/s is achievable with this module.SpecificationsModelMCP2551MaterialMetal and plasticInput Voltage (V)7Operating Temperature (°C)-40 to 125Storage condition (℃)-55 to 150Shipment Weight0.095 kgFeatures:Supports 1 Mb/s operationImplements ISO-11898 standard physical layer requirementsSuitable for 12V and 24V systemsThe externally-controlled slope for reduced RFI emissions Detection of ground fault (permanent Dominant) on TXD inputPower-on Reset and voltage brown-out protectionAn unpowered node or brown-out event will not disturb the CAN busLow current standby operationProtection against damage due to short-circuit conditions (positive or negative battery voltage)Protection against high-voltage transientsAutomatic thermal shutdown protectionUp to 112 nodes can be connectedHigh-noise immunity due to differential bus implementationTemperature ranges:– Industrial (I): -40°C to 85°C– Extended (E): -40°C to 125°CPackage Includes:1 x CJMCU-2551 MCP2551 CAN Protocol Controller High-speed Interface Module
