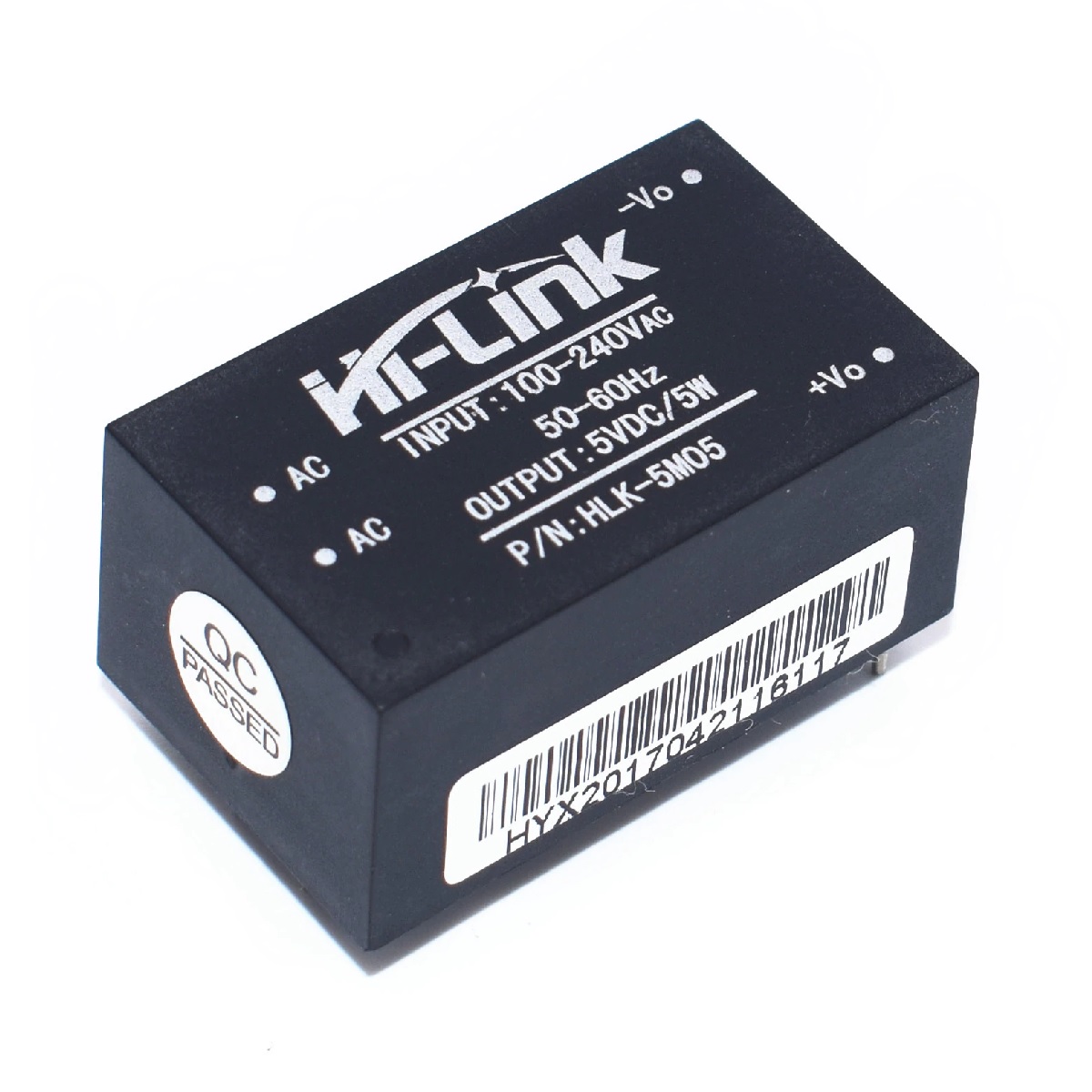

Specifications :AC Input Voltage Range90 ~ 264VOutput DC Voltage5 VOutput Power5WInput Low Voltage EfficiencyVin=110VAc, Output full-load: 69%Input High Voltage EfficiencyVin=220VAc, output full-load: 70%Long-term reliabilityMTBF 100000hLoad rated output voltage5±0.1Short-term maximum output current1000mAThe maximum output current for a long time:600mAOperating Temperature:-20 to 60°CStore Temperature-40 to 80°CRelative humidity5 to 95%Rated input voltage100-240VAcMaximum input current<0.2AInput current surge<10ADimensions in mm (LxWxH)38x23x18Weight(gm)22ColorBlackVoltage Regulation±0.2 %Load Regulation±0.5 %Shipment Dimensions8 × 5 × 3 cm HLK-5M05 5V/5W Switch Power Supply Module is plastic enclosed PCB mounted isolated switching step-down power supply module. It can supply 5V DC from 120V AC – 230V AC and has a power rating of 5 Watt. This makes it perfect for small projects that need a 5 volt supply from mains. This power supply module replaces lots of parts from the traditional power supply like diodes, voltage regulator and transformers. Therefore there are many advantages for these modules, such as low-temperature rise, low power, high efficiency, high reliability, high-security isolation etc.
