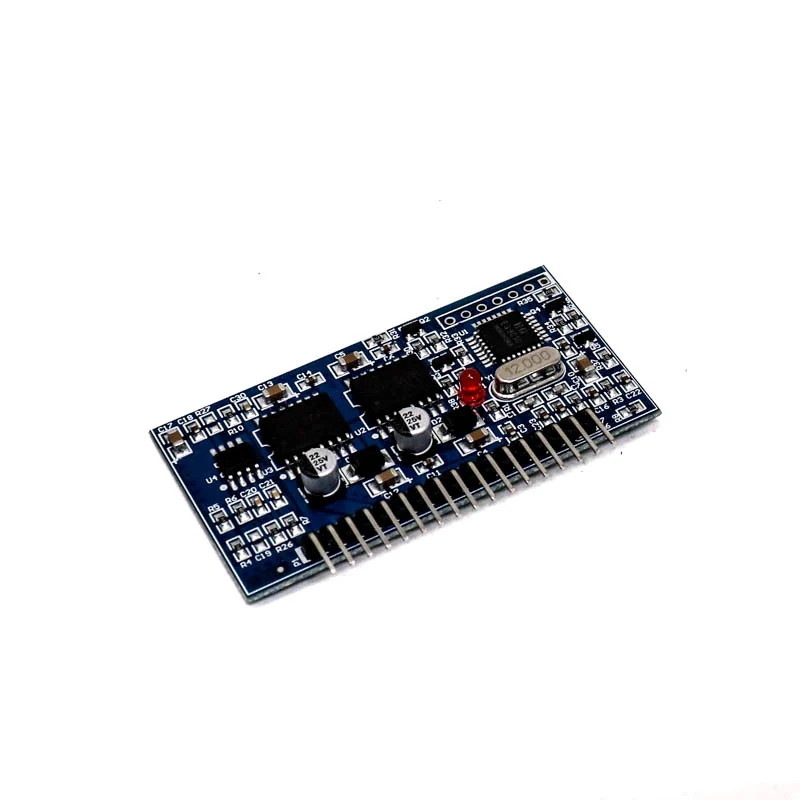

EGS002 EG8010 IR2113 DC-AC SPWM Pure Sine Wave Inverter Module

EGS002 is a driver board-specific for single-phase sinusoid inverter. It uses ASIC EG8010 as control chip and IR2110S as driver chip. The driver board integrates functions of voltage, current and temperature protection, LED warning indication and fan control. Jumper configures 50/60Hz AC output, soft start mode and dead time. EGS002 is an improved version of EGS001 that is compatible with EGS001’s original interfaces. EGS002 also integrates cross-conduction prevention logic toenhance its ability of anti-interference, and LCD display interface for users’ convenience to use chip’s built-in display function. EG8010 is a digital pure sine wave inverter ASIC (Application Specific Integrated Circuit) with complete function of built-in dead time control. It applies to DC-DC-AC two-stage power converter system or DC-AC single stage low power frequency transformer system for boosting. EG8010 can achieve 50/60Hz pure sine wave with high accuracy, low harmonic and distortion by external 12MHz crystal oscillator. EG8010 is a CMOS IC that integrates SPWM sinusoid generator, dead-time control circuit, range divider，soft start circuit, circuit protection, RS232 serial communication, 12832 serial LCD unit, and etc. Applications: Single-phase pure sine wave inverterPV InverterWind power inverterUninterruptible Power Supply UPS SystemDigital generator systemIF powerSingle-phase motor speed controllerSingle-phase inverterSine wave dimmerSine wave regulatorSine wave generatorFeatures: External 12MHz crystal oscillatorPWM carrier frequency 23.4KHzVoltage, current, real-time temperature feedbackOvervoltage, Undervoltage, overcurrent and overheating protectionSoft-start mode pin setting the response time of 1SSerial communication to set the output voltage, frequency and other parametersPackage Includes: 1 x EGS002 EG8010 IR2113 DC-AC SPWM Pure Sine Wave Inverter Board
