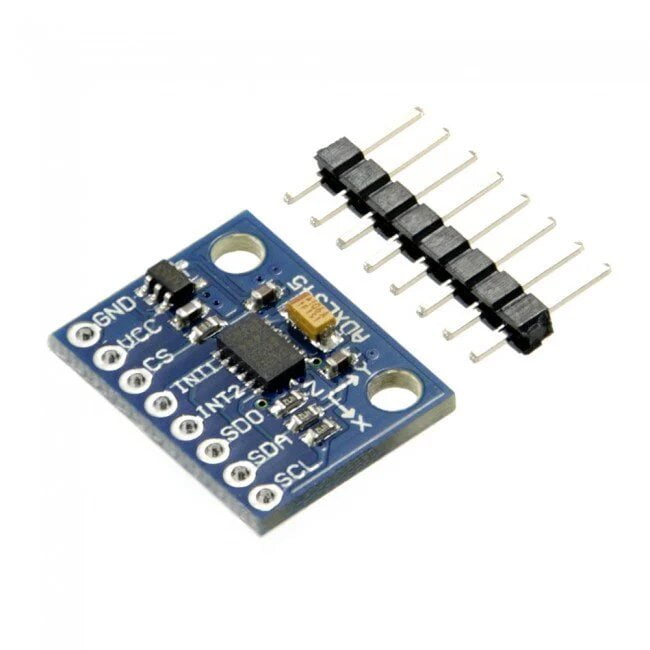

ADXL345 Tripple Axis Accelerometer Board is a small, thin, low power, 3-axis accelerometer with high resolution (13-bit) measurement at up to ±16g. Digital output data is format as 16-bit twos complement and is accessible through either an SPI (3- or 4-wire) or I2C digital interface.The ADXL345 Tripple Axis Accelerometer Board is well suited for mobile device applications. It measures the static acceleration of gravity in tilt-sensing applications, as well as dynamic acceleration resulting from motion or shock. Its high resolution (4 mg/LSB) enables measurement of inclination changes less than 1.0°. Specifications:Input Supply Voltage (VDC)3.3 ~ 5Interface TypeI²C, SPISensing Range±2g, ±4g, ±8g, ±16gX-Axis Sensitivity28.6 LSB/gY-Axis Sensitivity31.2 LSB/gZ-Axis Sensitivity34.5 LSB/gLength (mm)20.5Width (mm)15.5Height (mm)3.5Weight (gm)0.6
