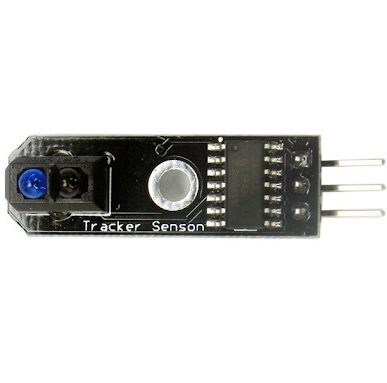

DescriptionDescriptionThe HW-006 V1.3 TCRT5000 IR reflex or line tracker sensor module is based on an infrared reflectance sensor. This is typically mounted at the end of a line that follows the robot chassis. This small tracking sensor module can detect not only transitions from light to dark lines but also objects in front of it. It is ideally used for detecting white or black lines., obstacle detection and meter pulse data sampling.Wiring:VCC: Connect the positive wire of the power supply (5V)GND: Connected to the negative wire of the power supplyOUT: High/Low level- Output switching signalSPECIFICATIONSModel/NameHW-006 V1.3TypeTracker SensorNo of Pin03Dimension35*10*8mmWorking Voltage5V DCPeak Operating Current20mA to 33mAOutput Digital (0,1)Country of OriginChina
