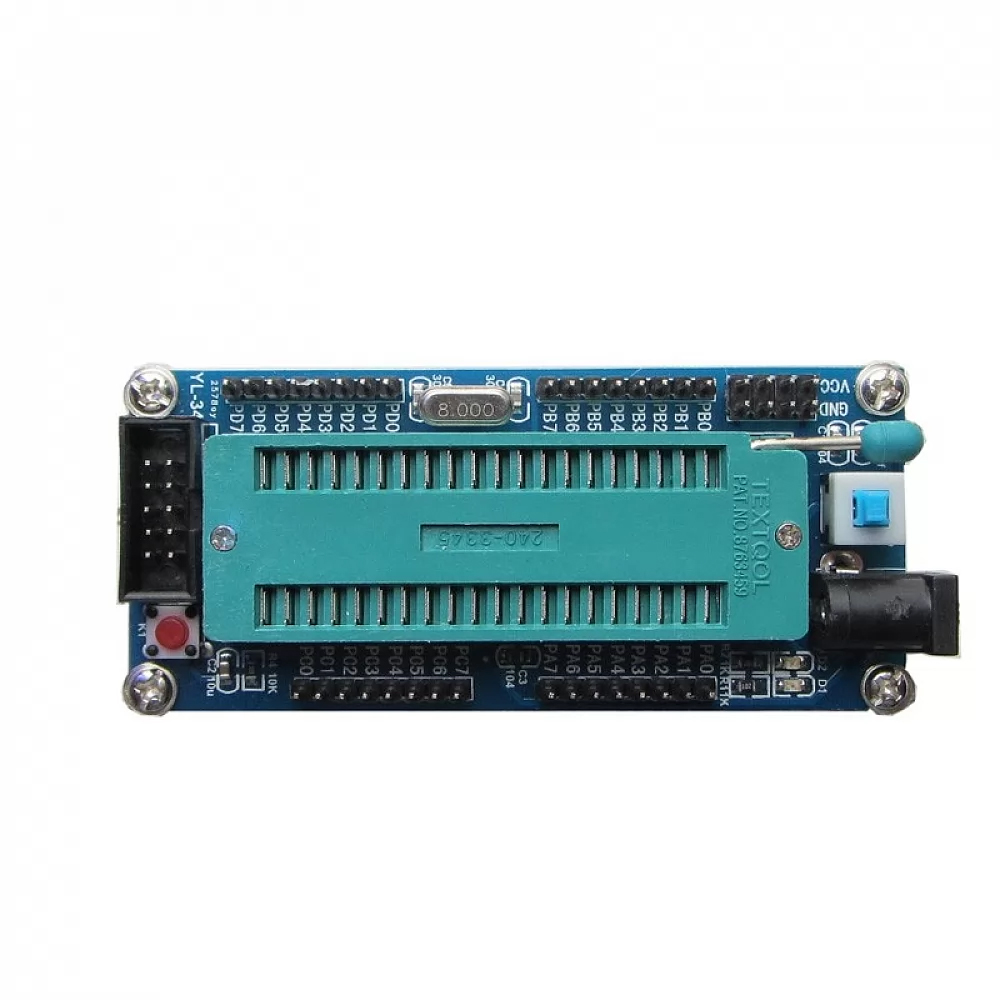

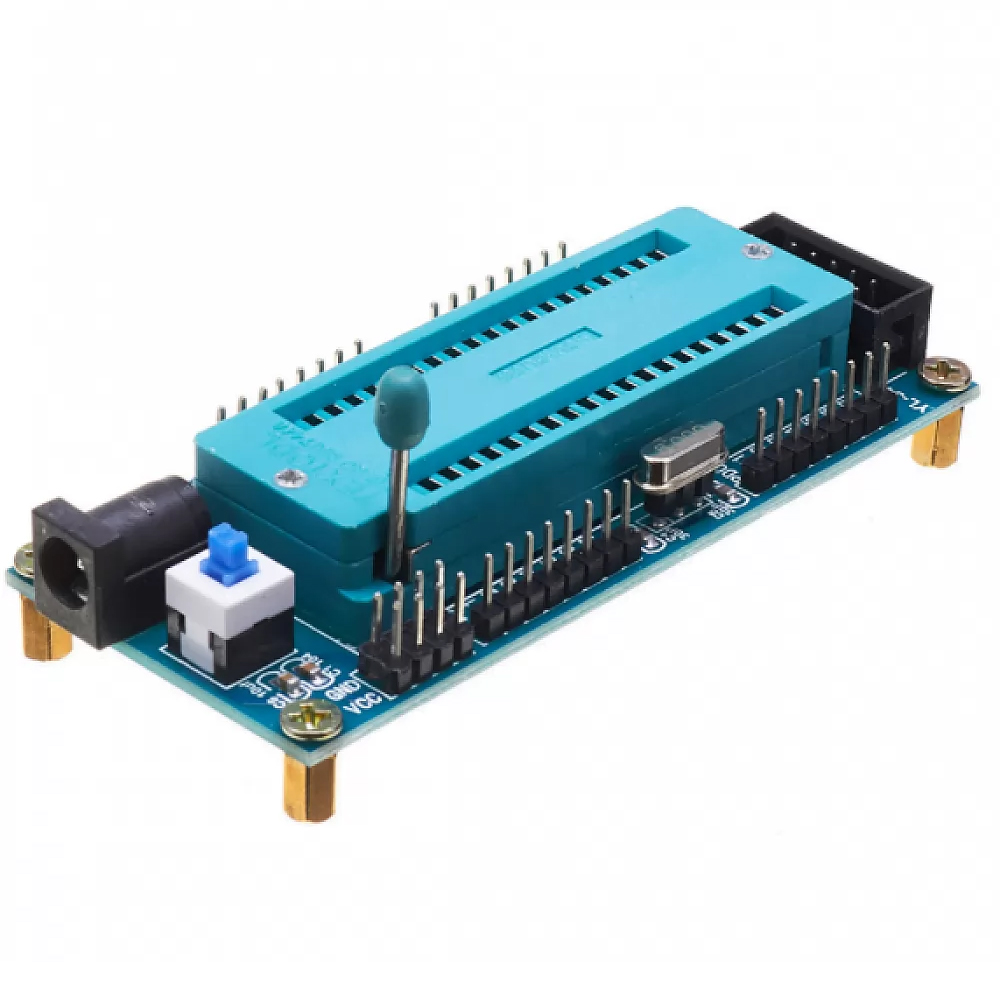

AVR Single Chip Minimum Study System Development Board ATMEGA16A-PU 32A-PU MEGA16
$80.2
$141.15
Specifications: 32 I/O pin all the leads. Classic ATmega16 minimum system, eliminating the hassle of soldering. Crystal: The socket hole welding facilitates the buyer to replace the crystal, 8M crystal. Support chips: ATmega16/ATmega32 and chip which pin-compatible. Power supply: power adapter or external expansion pin power supply (not support ISP download interface power supply) DC-005 Power Block (supporting the transposon is 5.5*2.1mm). Expand outside 4 channel VCC, GND. Reset: Power-on-reset and reset button. Power LED (D1) and the program run indicator (D2). Standard ISP download interface.
