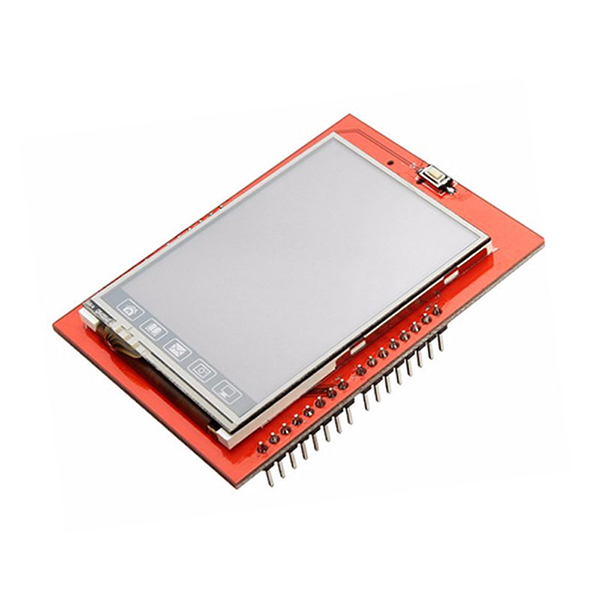

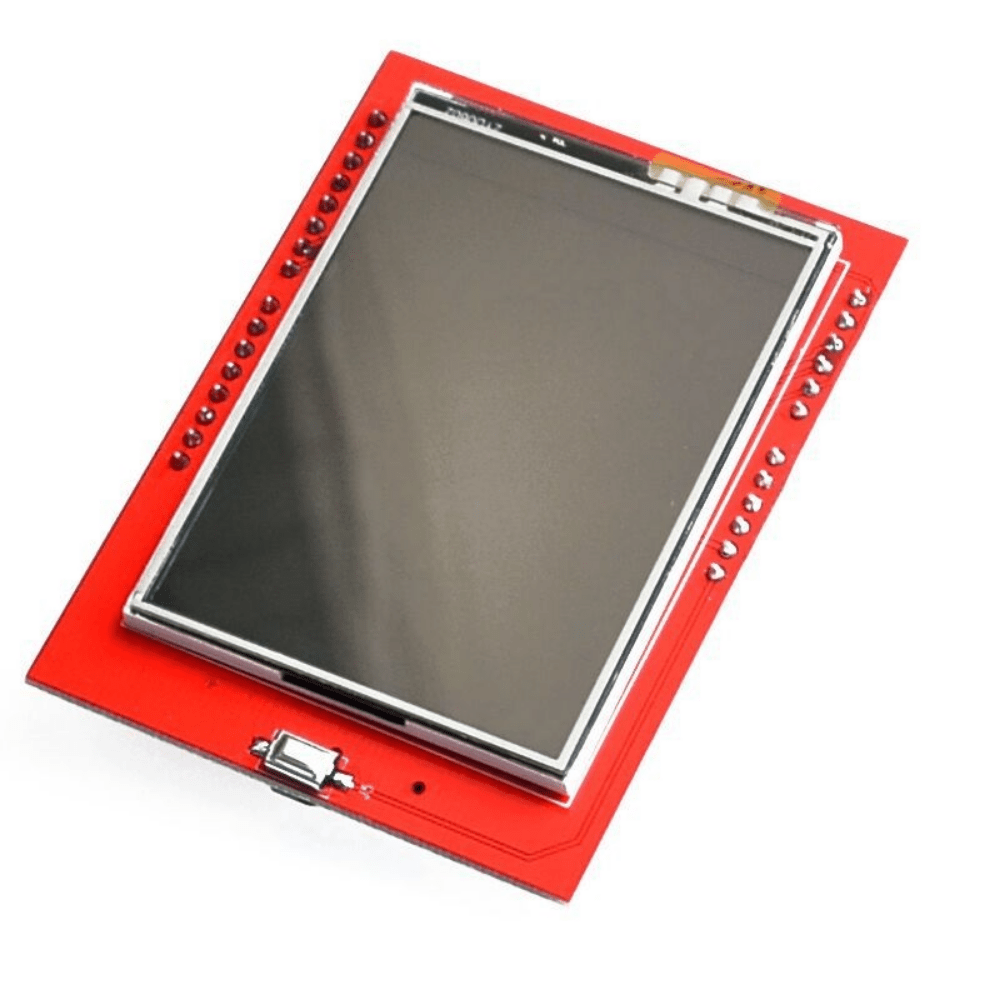

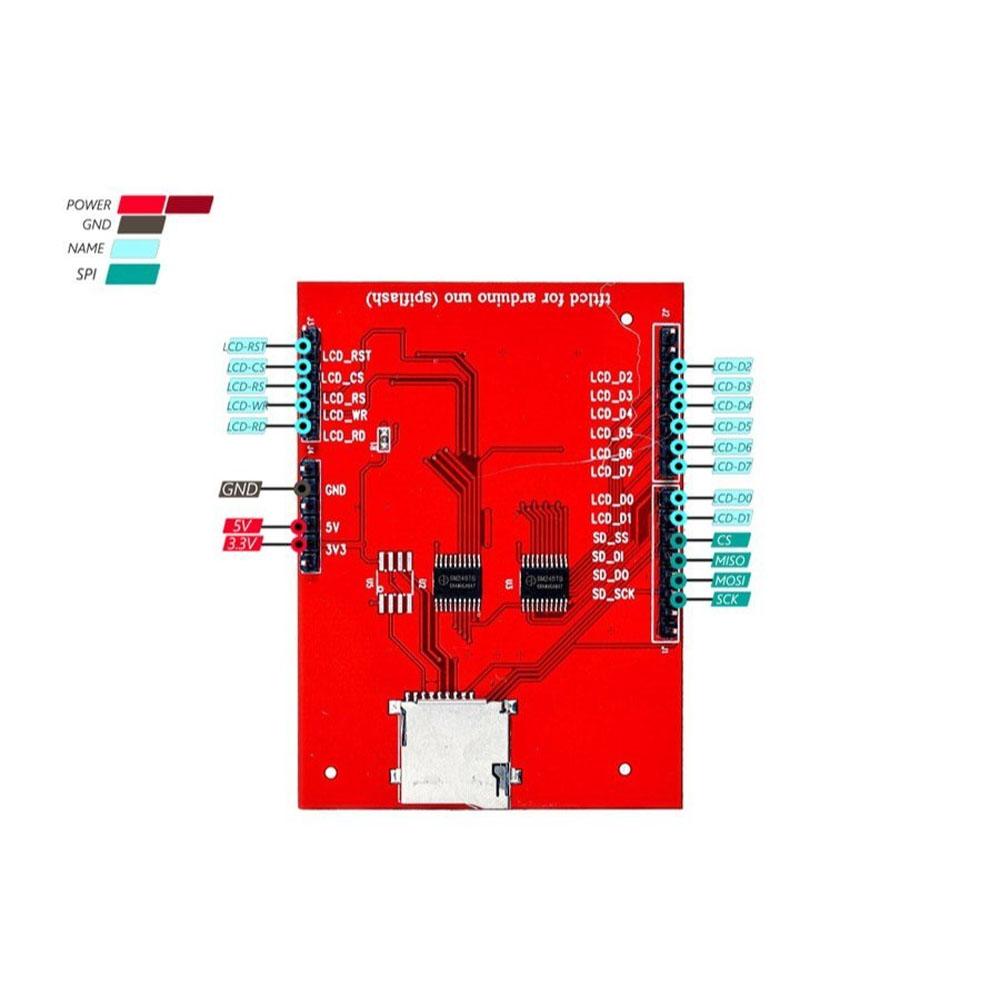

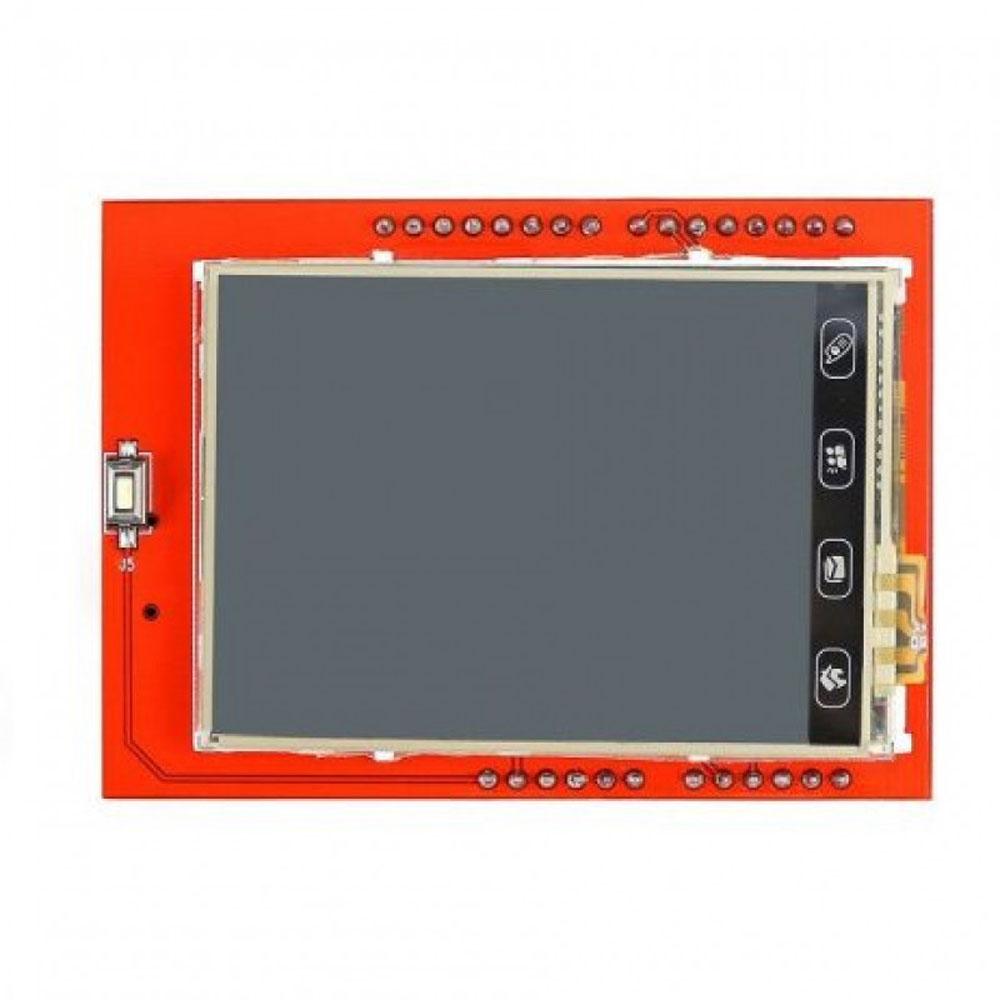

Specifications: 2.4″ diagonal Touch LCD TFT display 240×320 resolution, 18-bit (262,000) color 8-bit digital interface, plus 4 control lines Uses digital pins 5-13 and analog 0-3. That means you can use digital pins 2, 3, and analog 4 and 5. Pin 12 is available if not using the microSD Works with any Arduino UNO 5V compatible! Use with 3.3V or 5V logic 4 white LED backlights. By default but you can connect the transistor to a digital pin for backlight control Onboard 3.3V 300mA LDO regulator
