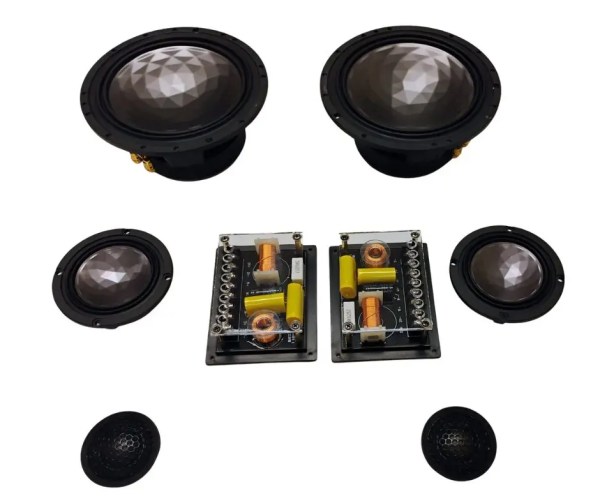

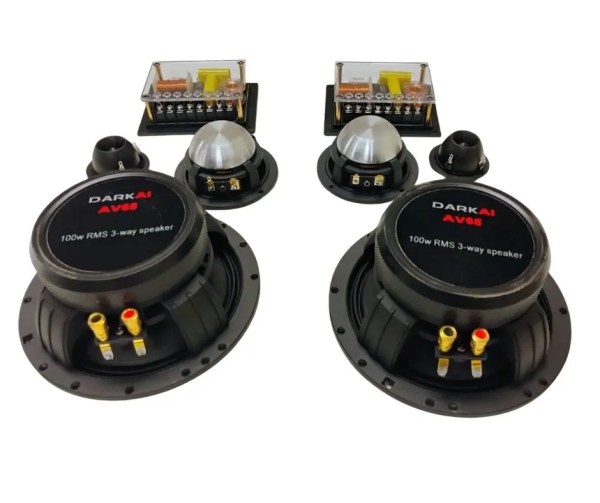

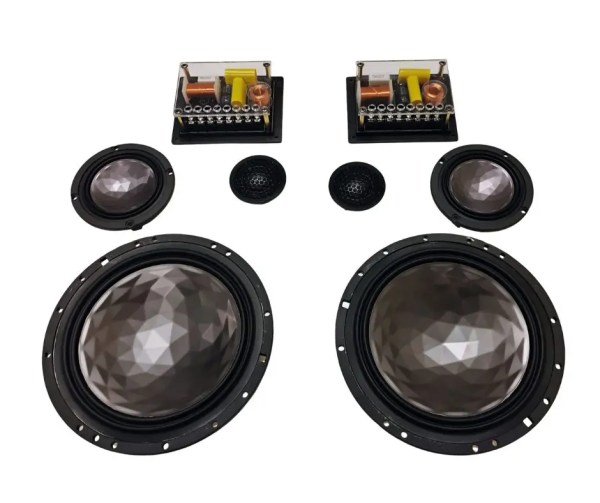

Description DARKAI AV65 3-way Hi Res Component Speaker Set The cam series subwoofer is made for low frequency extension , it is a ground pounder and does extremely well at low frequency music The AV series is geared towards SPL “sound pressure level” and higher frequencies and has advanced cooling capabilities with an aluminum dust cap which actively cools the subwoofer through the front , it also has an aluminum cooling ring between the frame and the motor. The DKI series is made for low frequencies and is very musical with a higher power rating than the cam series it also combines the advanced cooling abilities of the AV series with the aluminum dust cap as well as being able to produce very good SPL “sound pressure level”, it’s a great all-around driver. DARKAI AV65 Passive Crossover Setup Parameter Watts: 100w RMS Impedance: 4 Ohm Sensitvity: 93DB 1w1m Frequency Response: 45hz-25Khz Active Setup Parameter Mid-bass, 60W power Impedence: 4 Ohm Frequency range: 45-500Hz Sensitivity: 89dB Diameter: 165mm. 6 1/2″ Opening diameter: 149mm. 5 7/8″ Installation depth: 78mm. / 3″ inch Midrange Power: 20W Impedance: 4 ohms Frequency range: 500-5000Hz Sensitivity: 92dB Diameter: 92mm. 3 5/8″ Opening diameter: 73mm. 2 7/8″ Installation depth: 43mm. 1 11/16″. Tweeter Power: 20W Impedance: 5.6 Ohms Frequency range: 4000-25000 Hz Sensitivity: 95dB Diameter: 51mm. 2″ Opening diameter: 43mm. 1 11/16″ Installation depth: 20mm. 3/4″ Fuse Block: Weight: 180 grams Size: 4.5 * 3.5 * 1.2 In Big Speakers: Weight: 1.35 kg Size: 6.5 In Mid Speakers: Weight: 210 grams Size: 3.8 In Small Speakers: Weight: 60 grams Size: 2.2 In
