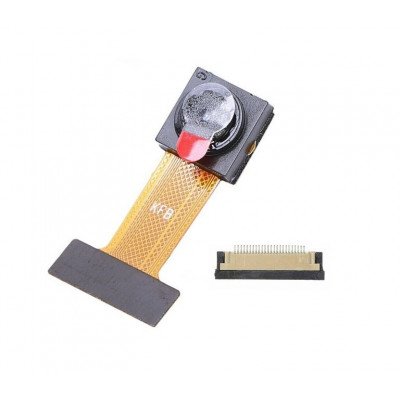

0.3MP OV7670 Camera Module with High Quality SCCB Connector

The 0.3MP OV7670 Camera Module with High-Quality SCCB Connector is a low voltage CMOS image sensor; that provides the full functionality of a single-chip VGA(Video Graphics Array) camera and image processor in a small footprint package. The OV7670/OV7171 provides full-frame, sub-sampled or windowed 8-bit images in a wide range of formats; controlled through the Serial Camera Control Bus (SCCB) interface.This 0.3MP OV7670 Camera Module has an image array capable of operating at up to 30 frames per second (fps) in VGA; with complete user control over image quality, formatting and output data transfer. All required image processing functions, including exposure control, gamma, white balance; color saturation, hue control and more, are also programmable through the SCCB interface.SpecificationsOperating voltage2.5 – 3.0VPixel Resolution0.3MPPhotosensitive array640 x 480Optical Size1.6 inchAngel of view67 degreesMaximum Frame Rate30fps VGASensitivity1.3V/(Lux-sec)DormancyLess than 20APower consumption60mW/15fpsVGA YUVTemperature operation Range-30 ° C ~ 70 ° CPixel area3.6 x 3.6 μmSignal to noise ratio (SNR)46 dBDynamic range52 dBShipment Weight0.04 kgFeatures:High sensitivity for low-light operation.Low operating voltage for embedded portable apps.The standard SCCB interface is compatible with the I2C interface.Supports VGA, CIF, and resolutions lower than CIF for RGB (GRB 4:2:2, RGB565/555), YUV (4:2:2) and YCbCr (4:2:2) formats.VarioPixel® method for sub-sampling.Automatic image control functions includes : Automatic Exposure Control (AEC), Automatic Gain Control (AGC), Automatic White Balance (AWB), Automatic Band Filter (ABF), and Automatic Black-Level Calibration (ABLC).Image quality controls including color saturation, hue, gamma, sharpness (edge enhancement), and anti-blooming.ISP includes noise reduction and defect correction.Supports LED and flash strobe mode.Supports scaling.Lens shading correction.Flicker (50/60 Hz) auto-detection.Saturation level auto adjust (UV adjust).Edge enhancement level auto-adjust.De-noise level auto-adjust.Sleep Power consumption: <20μA.Stable operation: 0 ° C to 50 ° C.Browse mode line by line.Electronic exposure 1 line to 510 lines.Output format: (8-bit) YUV/YCbCr4:2:2 RGB565/555/444 GRB4:2:2 Raw RGB Data.Material: plastic metal.Package Includes:1 x 0.3MP OV7670 Camera Module.1 x SCCB (Serial Camera Control Bus) Connector(24 pin).
