$47.36
$57.78

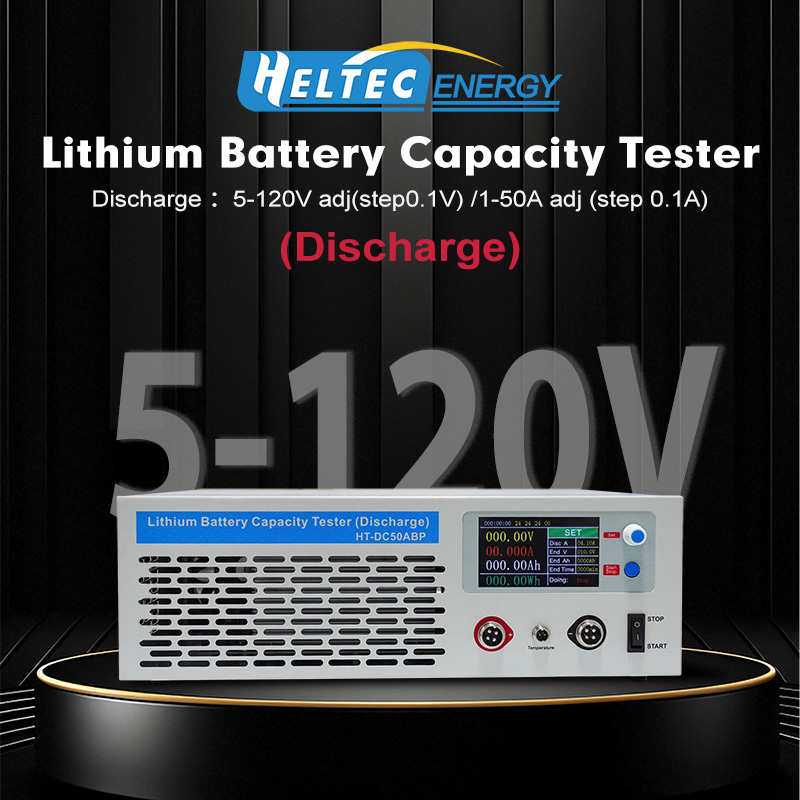

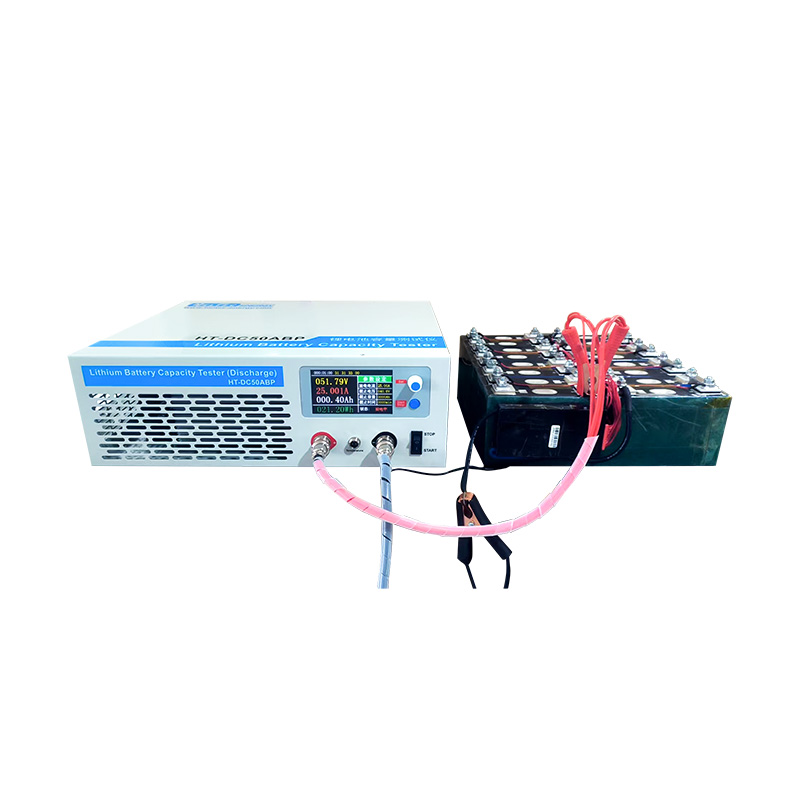

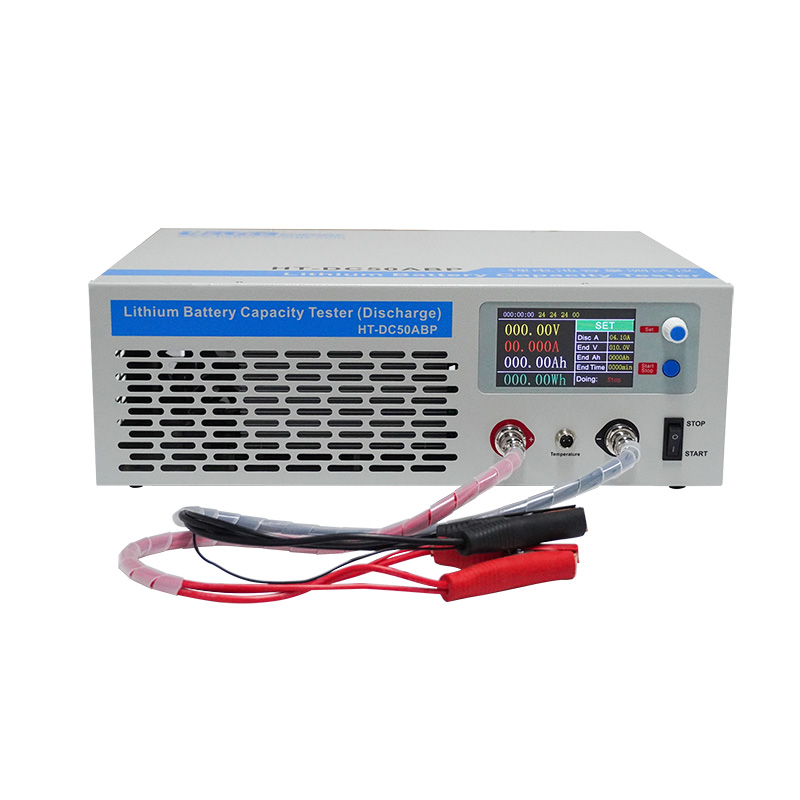

Battery Capacity Tester (Discharge) High cost-effective battery discharge capacity tester – HT-DC50ABP, Heltec’s latest battery discharge capacity tester, perfectly suitable for 5-120V batteries, designed for battery packs, from low voltage to high voltage scenarios, all in one go! Discharge Voltage Range: 5-120V Discharge Current Range: 1-50A Brand Name: Heltec Energy Origin: Mainland China Warranty: One year MOQ: 1 pc Model： HT-DC50ABP Battery discharge capacity tester Use range: Batteries within 5-120V Discharge parameters: 5-120V Adj (step 0.1V),1-50AAdj (step 0.1A)Max 20A within 5-10V,Max 50A within 10-120VMax discharge power 6000W Work step: Set voltage/Set capacity/Timed Discharge Accuracy V±0.1%, A±0.2%,The accuracy is valid for one year from thedate of purchase Power AC110-240V 50/60HZ Size and weight Product Size 380*158*445mm, Weight 8.7Kg Work Step Constant Voltage Discharge Constant Capacity Discharge Timed discharge Battery Protection Functions Over-voltage / Over-current Protection Battery reverse connection protection Battery high temperature alarm and protection High temperature alarm and protection inside the machine Product Usage Specification The battery discharge capacity tester use range: batteries voltage within 5-120V Discharge Parameters: 5-120V Adj (step 0.1V), 1-50AAdj (step 0.1A) Discharge voltage range: Max 20A within 5-10V, Max 50A within 10-120V Max discharge power: 6000W Protective function: Overvoltage/reverse connection/overcurrent/battery high temperature/machine high temperature alarm and protection Heat dissipation method: Forced air cooling and delayed operation for 2 minutes (do not use if the fan does not turn) Work environment Matters needing attention: This machine uses heating wires to consume electrical energy,which generates a large amount of heat during operation.It is necessary to ensure good heat dissipation and have someone on duty. The temperature at the back air outlet is as high as 90℃,so no flammable,explosive or valuable items are allowed within 1 meter around this machine. 1. Battery Discharge capacity tester *1 set 2. Power line *1 set 3. Network cable *1 set 4. Anti-static sponge, carton box. Application: This battery discharge capacity tester is suitable for: Energy and energy storage batteries that support various scenarios, battery packs with voltages ranging from 5 to 120V Request for Quotation: Jacqueline:
