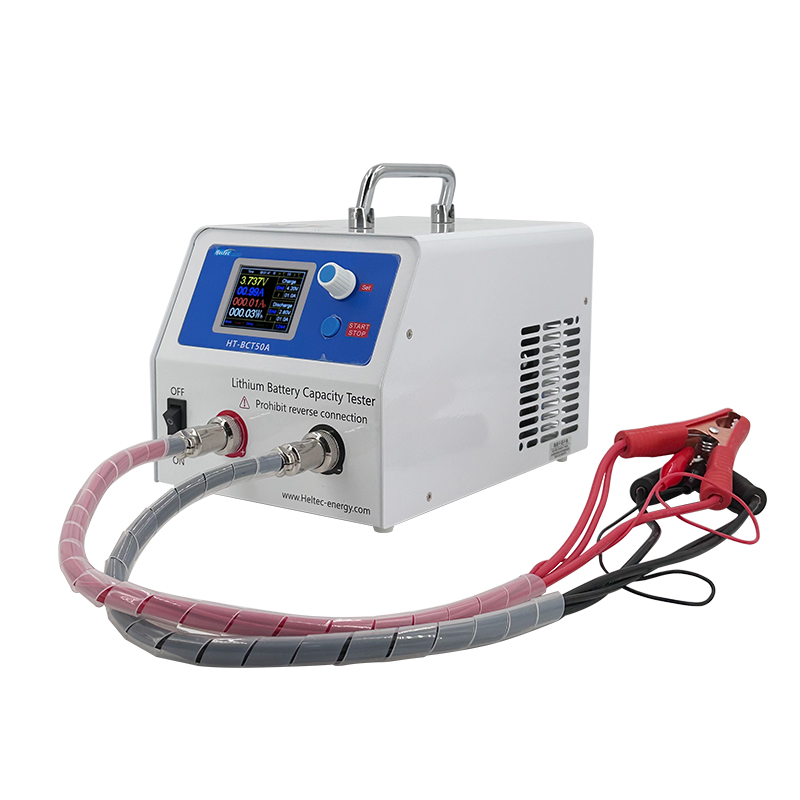

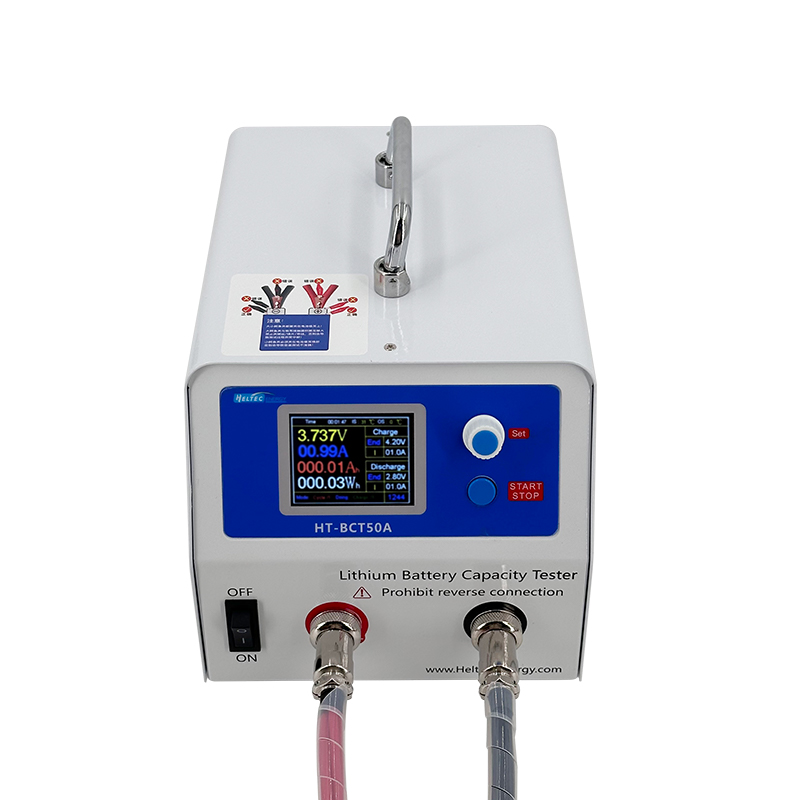

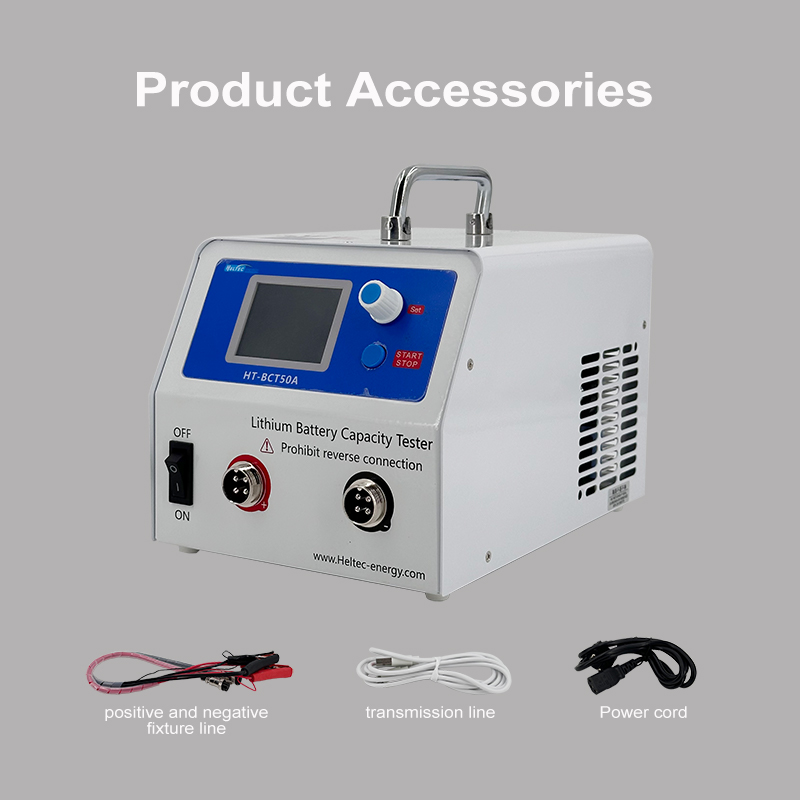

HT-BCT10A 30V(whole group) Battery Capacity Tester Product Information The battery charge and discharge capacity tester production information: Brand name Heltec Energy Origin China Model HT-BCT10A30V Charging range 1-30V/0.5-10A Adj Discharge range 1-30V/0.5-10A Adj Work step Charge/Discharge/Rest time/Cycle Communication USB, WIN XP or above systems, Chinese or English Protective function Battery overvoltage/Battery reverse connection/ Battery disconnection/Fan not running Accuracy V±0.1%,A±0.1%(The validity period of accuracy, within one year from the date of purchase) Cooling Cooling fans open at 40°C, protected at 83°C (please check and maintain the fans regularly) Working environment 0-40°C, air circulation, do not allow heat to accumulate around the machine Warning It is forbidden to test batteries over 30V Power AC200-240V 50/60HZ (110V, Customizable) Size Product Size 167*165*240mm Weight 2.6kg Warranty one year MOQ 1 PC Protective Functions： Battery over-voltage Battery disconnect Internal high temperature Battery reverse connection Product Introduction： The battery charge and discharge capacity tester’s appearance introduction: 1. Power switch: If the power is suddenly cut off during the test, the test data will not be saved. 2. Display screens: Display charging and discharging parameters and discharge curve. 3. Coding switches: Rotate to adjust working mode, press to set parameters. 4. Start/Stop button: Any operation in running state must be paused first. 5. Battery positive input: 1-2-3 pin through current, 4 pin voltage detection. 6. Battery negative input: 1-2-3 pin through current, 4 pin voltage detection. Use method： The battery charge and discharge capacity tester using method: 1. Start up first, and then clip the battery. Press the setting knob to enter the setting page, rotate left and right to adjust the parameters, press to determine, Set the parameters correctly and save the exit. The battery charge and discharge capacity tester’s parameters that need to be set in various modes Parameters to be set in Charging mode: Single cell Charging End V: lithium titan ate 2.7-2.8V, 18650/ternary/polymer 4.1-4.2V, lithium iron phosphate 3.6-3.65V Battery pack Charging End V=Number of strings*single-cell Charging End V-0.5V. Charging current: It shall be set at 10-20% of the capacity of a single battery, and the battery cell shall not generate heat as much as possible. Judging full current: When constant current charging is switched to constant voltage charging, and the charging current decreases to this value, it is judged as fully charged and set to 0.3A by default. Parameters to be set in Discharge mode: Single cell Discharge End V: lithium titan ate 1.6-1.7V, 18650/ternary/polymer 2.75-2.8V, lithium iron phosphate 2.4-2.5V. Battery pack Discharge End V= Number of strings*single-cell Discharge End V 0.5V. Discharge current: It shall be set at 20-50% of the capacity of a single battery, and the battery cell shall not generate heat as much as possible. Parameters to be set in Cycle mode: After setting the parameters of charging mode and discharging mode at the same time Keep voltage: In cycle mode, the last time the Charging End V, Allowed to be set between Charge End V Discharge End V . Voltage recording: Due to consistency issues such as capacity, internal resistance, and pressure difference in the battery cells, BMS may be protected in advance. Therefore it is possible to choose whether to record the voltage value at the moment of protection of the protection board. Resting time: Let the battery cool down and rest for a while, usually set to 10 minutes. Cycle: Max 5 times, 1 times(charge-discharge-charge), 2 times(charge-discharge-charge-discharge-charge), 3 times(charge-discharge-charge-discharge-charge-discharge-charge). 2．Return to the home page, rotate the setting button to the left or right to the working state, and press again to pause. 3．After waiting for the test to end, the result page will automatically pop up (press any button to stop the alarm sound) and record it manually. Test the results, and then test the next battery. The battery charge and discharge capacity tester’s test results: 1 indicates the first cycle, the AH/WH/min of charge and discharge respectively. Press the start / stop button further to show the results and curve of each step in turn. The yellow numbers represent the voltage axis, and the yellow curve represents the voltage curve. Green numbers represent the current axis, green numbers represent the current curve. When the battery performance is good, the voltage and current should be a relatively smooth curve. When the voltage and current curve rises and falls sharply, it may be that there is a pause during the test or the charging and discharging current is too large. Or the internal resistance of the battery is too large and it is close to being scrapped。 ← BackThank you for your response. ✨ Name(required) Email(required) Website Message Submit Δ Request for Quotation: Jacqueline:
