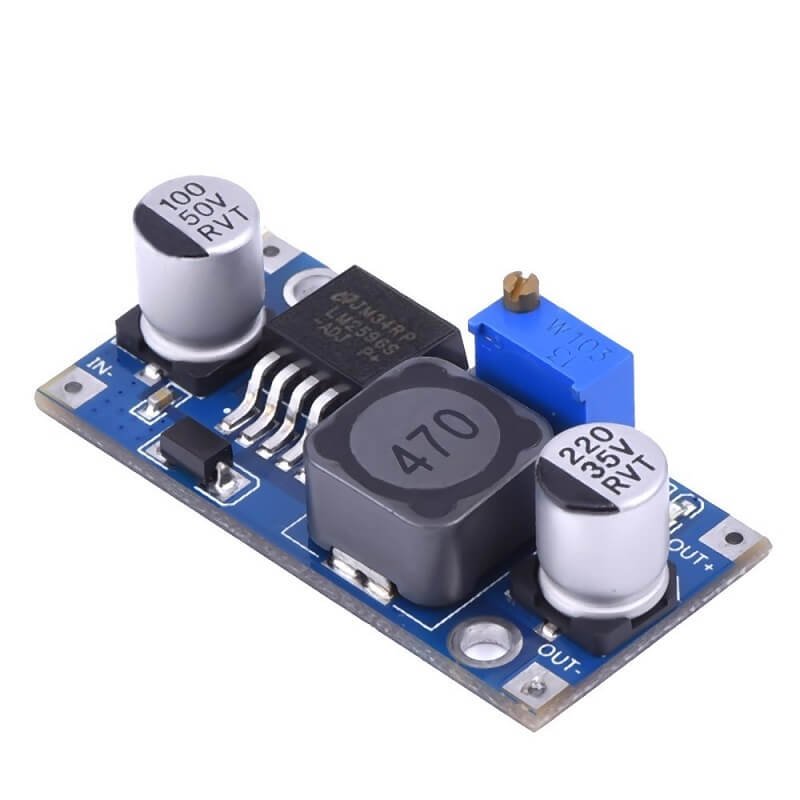

LM2596 DC-DC Buck Converter Step Down Module Power Supply
$67.5
$85.73

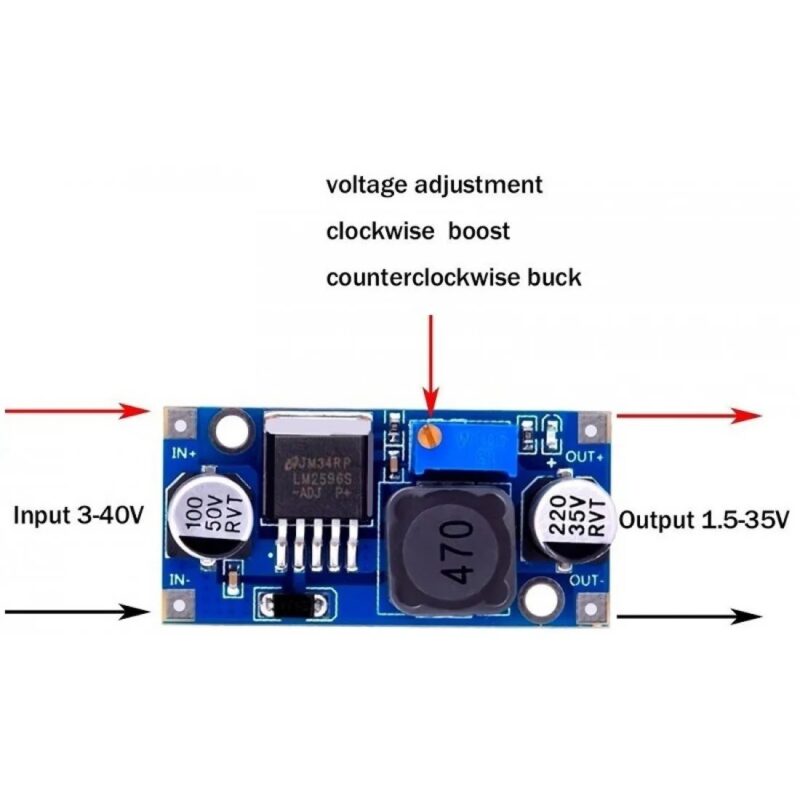

Features of LM2596 DC-DC Buck Converter Module: Output ripple: 30mA maximum Load Regulation: ± 0.5% Voltage Regulation: ± 0.5% Dynamic Response speed: 5% 200uS Input voltage:4.75-35V Output voltage:1.25-26V(Adjustable) Output current: Rated current is 2A, maximum 3A(Additional heat sink is required) Conversion Efficiency: Up to 92% (output voltage higher, the higher the efficiency) Rectifier: Non-Synchronous Rectification Module Properties: Non-isolated step-down module (buck) Short Circuit Protection: Current limiting, since the recovery Operating Temperature: Industrial grade (-40 to 85 ) (output power 10W or less
