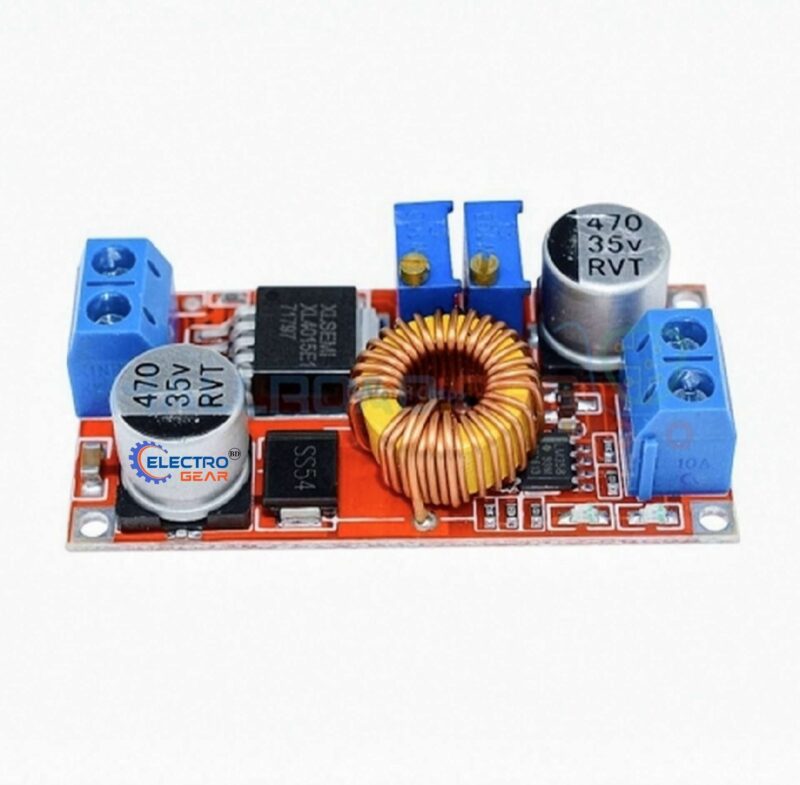

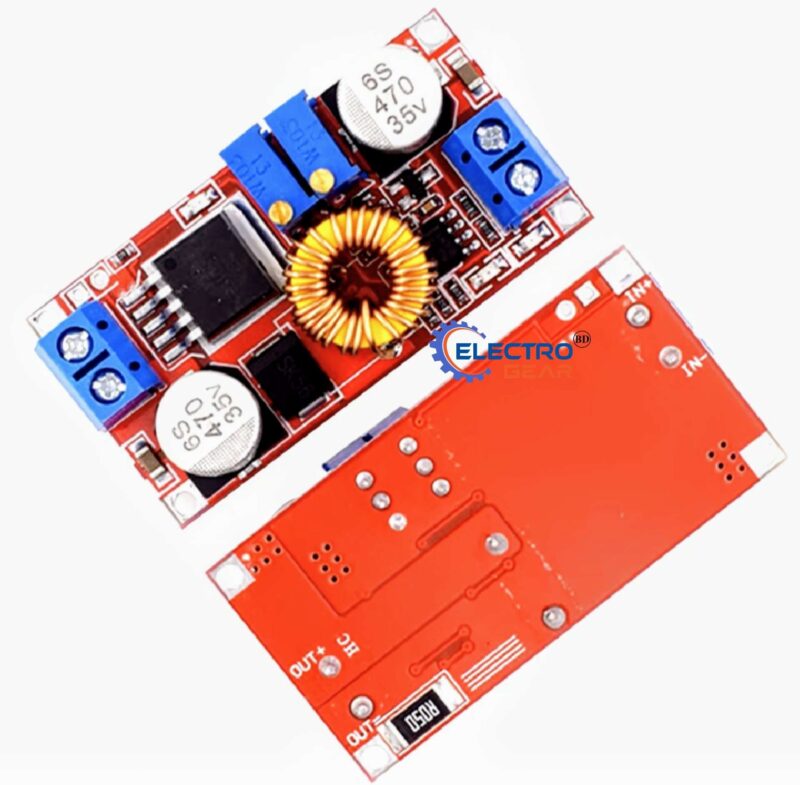

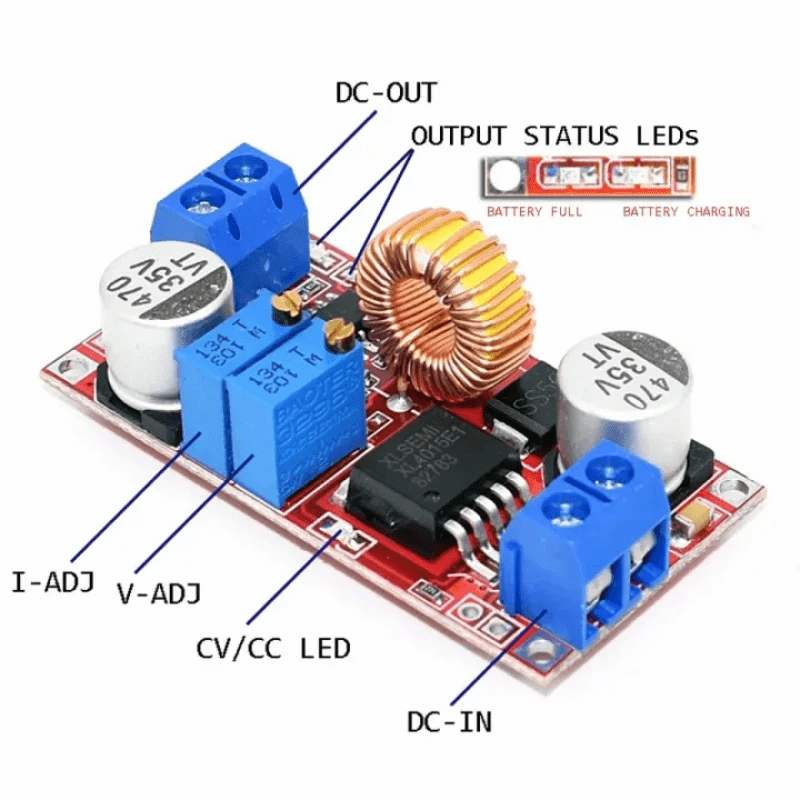

XL4015 Module Buck Converter 5V-32V To 1.5V-30V 5A 75W
$47.14
$77.31
Size: 5.2 x 2.65 x 1.4cm (L x W x H) Module Properties: non-isolated constant current and voltage module Rectification: non-synchronous rectification Input voltage: 5V-36V Output voltage: 1.25V-32V Output current: adjustable maximum 5A Conversion efficiency: 95% (the highest) Switching frequency: 180KHz Output ripple: 50mV (max) 20M bandwidth Load Regulation: ± 0.5% Voltage Regulation: ± 2.5% Operating Temperature: -40°cto 85°c
Converter
