$54.12
$68.19

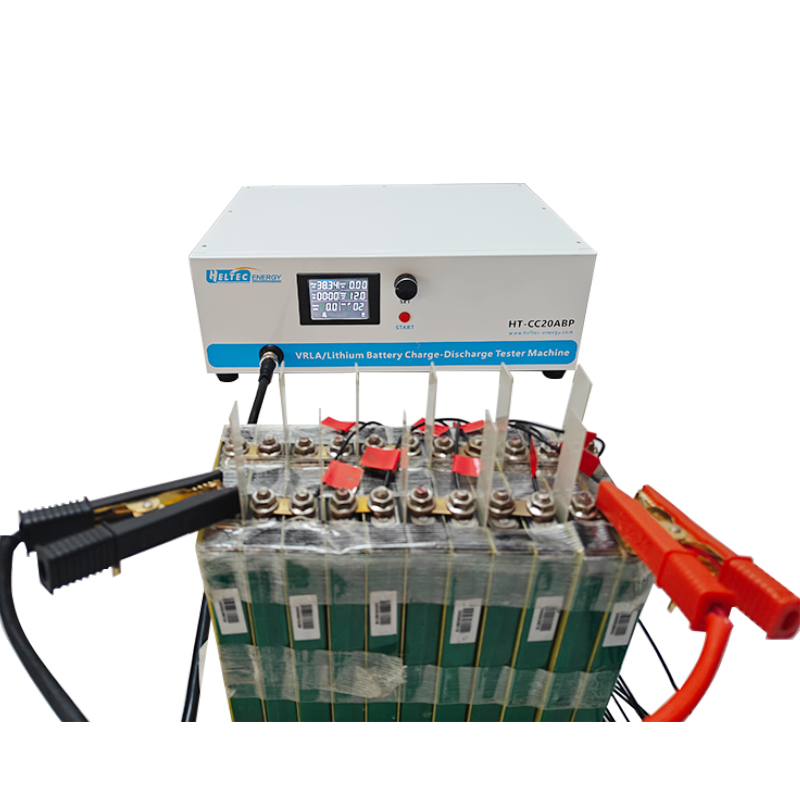

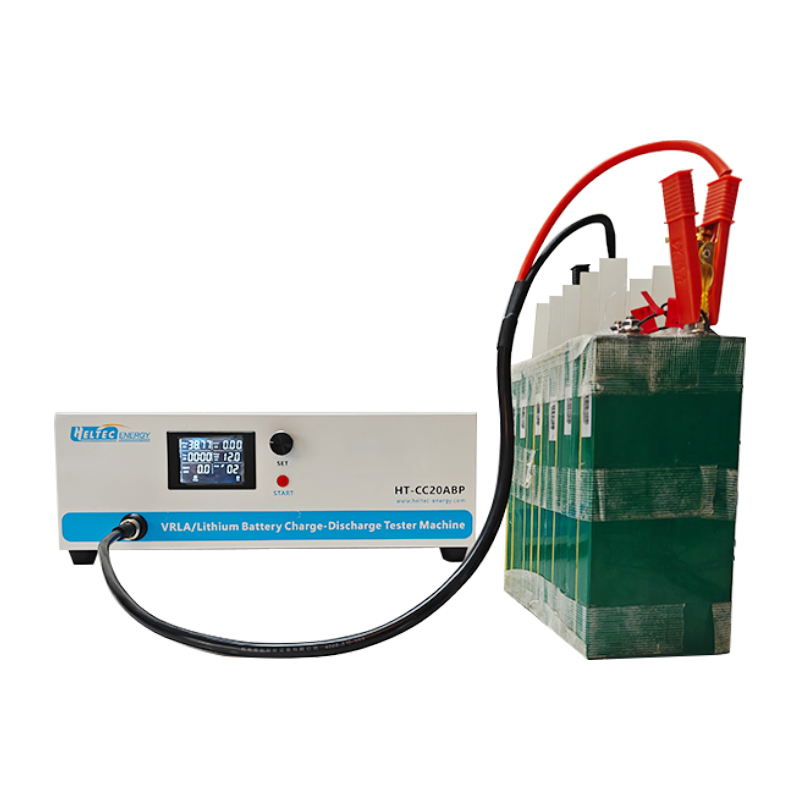

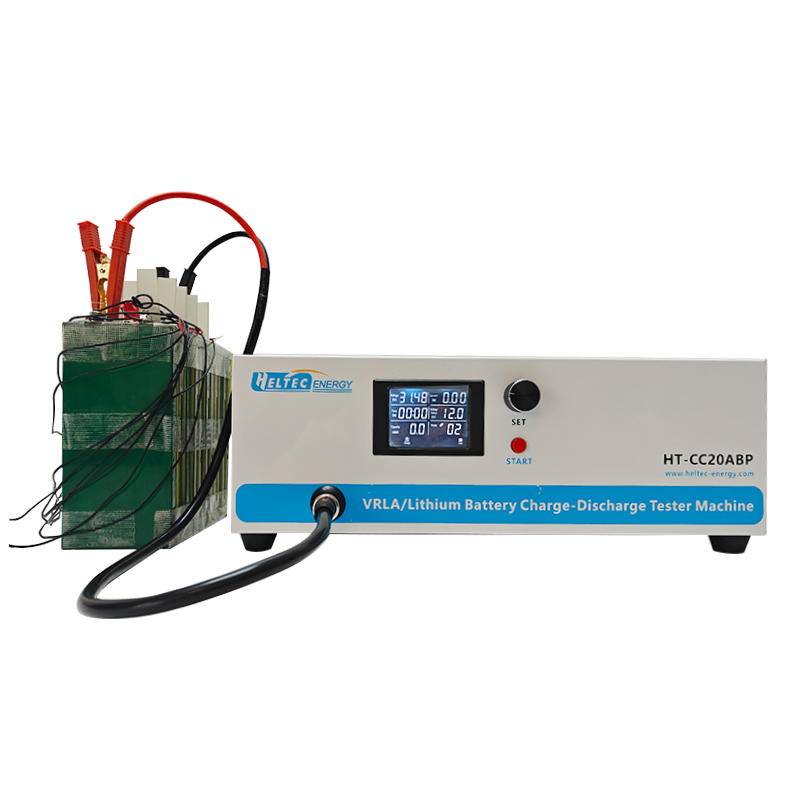

HT-CC20ABP Lithium Battery Charge/Discharge Test Machine Product Information Brand Name: Heltec Energy Origin: Mainland China Warranty: One year MOQ: 1 pc Battery Type: Lead-acid battery, lithium-ion battery, other battery Channels: Single group Max Charge current: 20A Max Discharge current: 40A Maximum Measuring Voltage: 99V Single package size: 60X57X27 cm Single gross weight: 15.000 kg Application: Used for battery capacity (charge & discharge) test./Battery capacity Tester Technical Parameter: Discharge current accuracy ±0.03A Discharge voltage accuracy ±0.03V Discharge cut-off voltage 9 ~ 99V adjustable, adjustable range 0.1V Discharge current 0.5 to 40A constant current, adjustable current 0.1A Charging voltage accuracy ±0.03V Charging voltage range 9-99V Adjustable 0.1V Charging current Adjustable from 0.5 to 20A, current adjustable from 0.1A Charge cut-off current 0.1-5A 0.1A is adjustable Charging current accuracy ±0.03A Cyclic shelving time 0-20 minutes Maximum number of cycles 16 times Cycle last charge capacity preset 0-99AH(0 indicates no preset) Features ※ The battery capacity tester with protection function of positive and negative polarity reverse connection ※ Our battery capacity tester has Intelligent cooling fan ※ The battery capacity tester with special LCD screen, all data at a glance ※ The battery capacity tester with high precision, flexible setting, to meet different charging and discharging requirements Request for Quotation: Jacqueline:
